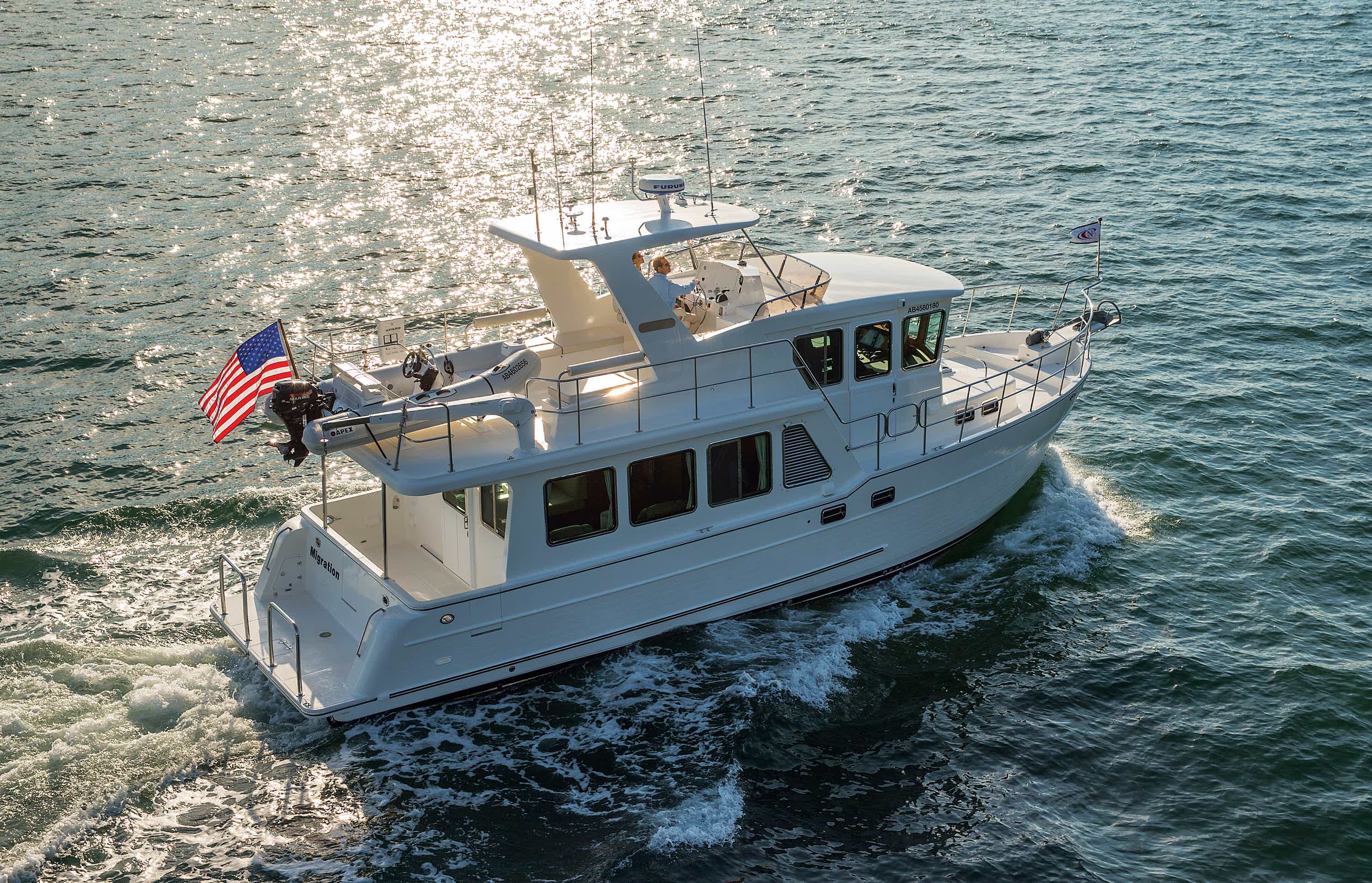

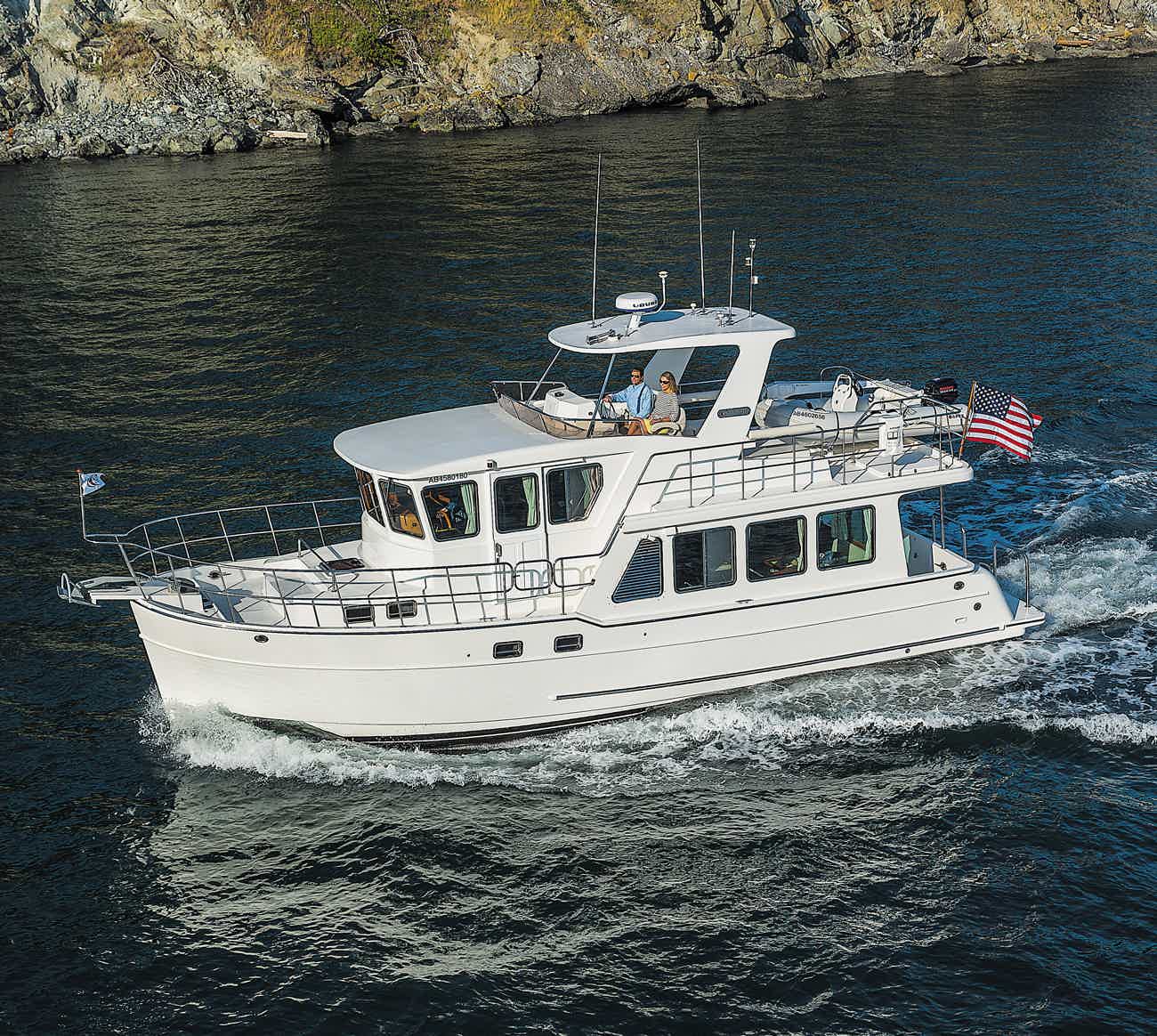

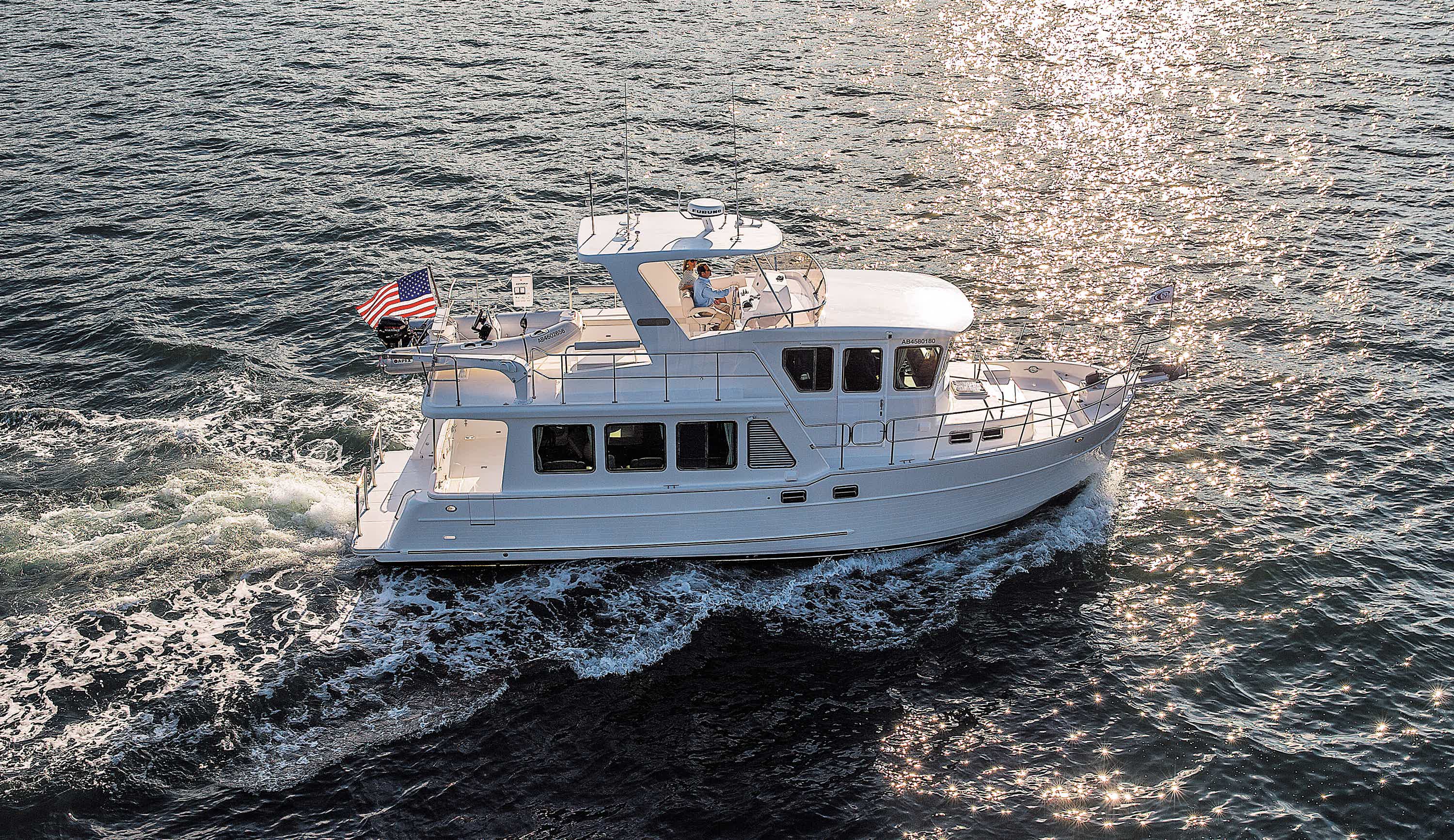

North Pacific Yachts 45' Pilothouse

Enhanced for Better Living

The North Pacific 45′ Pilothouse builds on the successful attributes of the NP43, North Pacific Yachts' first and thus far, most popular model, and boasts their Next Generation, world-class teak finished interior with all the luxuries you expect.

Built to Last

• Solid, hand-laid fiberglass hull
• Superstructure cored primarily with synthetic honeycomb core including all decks
• DSM High UV gelcoat
• High polished #316L stainless steel

Luxury Awaits...

• Real teak and holly flooring throughout
• Satin finished teak paneling and cabinetry with 9 coats of polyurethane for a perfectly soft finish
• IMTRA LED lighting, direct and indirect
• All drawers dovetailed with full extension slides
• Granite countertops
• Bent laminated and routed trim throughout
• Book-matched cabinetry
• Tasteful, lighter materials in select areas

Comprehensive, High Quality Equipment

• Cummins 355 QSB6.7L engine
• Northern Lights generator
• Side-Power SE130 24v bow thruster
• Magnum MS2812 pure sine inverter/charger
• Maxwell windlass with G4 chain and Rocna anchor
• Nick Jackson davit
• Full set of Garmin electronics
• Fusion stereo system
• Premium water pumps, plumbing, sanitation, fixtures, fittings & ground tackle
• Much more...

Your Home on the Water

• Spacious & comfortable salon
• A galley you might even call a kitchen
• Comfortable & flexible guest stateroom
• Queen Island master stateroom bed
• Well-appointed head(s) & separate shower
• High ceilings & large windows throughout
• Carefully planned direct and indirect lighting throughout

Construction

• Solid, hand-laid fiberglass hull. Outer two layers are vinyl ester resin
• Superstructure cored primarily closed cell foam core including all decks
• Fully integrated swimming platform
• All interior floors supported by aluminum grid
• International paints micron Extra anti-fouling
• International paints epoxy barrier coating below water line - Vinyl Ester resin 2 outer layers of hull

Engine Room, Propulsion and Fresh Water System

• 355hp Cummins QSB diesel engine with 160 amp alternator, ZF85A transmission
• Engine room 2" sound insulation - 3 salon floor hatches for access and stairs that flip up at forward end
• Aluminum non-skid plate floors
• Engine room light (4) - upgraded to LED
• Engine room blower
• Fiberglass fuel tanks (2 X 200 gallons) - fuel lines for engine 1/2 ID (2 x 350 gallon tanks available)
• Stainless steel shaft - Aqua 17
• Dripless shaft seal - Tides Marine
• Precision 4 blade propeller
• Hynautic 2 station hydraulic steering
• Cummins ETS (electronic throttle and shift) control module
• Water lift muffler and 6" exhaust
• Sea cock and strainer on engine raw water intake
• Dual Racor fuel filter
• Automatic bilge pump (3) - Rule or comparable brand
• Manual bilge pump (1)
• Holding tank (60 GAL) w/ Whale diaphragm macerator and pump out and Trident Premium sanitation hose
• Fiberglass water tanks (1 X 250 gallons)
• Dual variable speed fresh water pump with 1gal accumulator tank - quiet
• Fresh water intake (2)
• 11 gallon water heater in engine room
• Oil change system for engine and generator
• Seafire automatic fire extinguisher and automatic engine shutdown

Electrical

• Northern Lights genset w/ sound shield and water/gas separator 120/240V - size depends on heating/cooling selection
• Magnum MS2812 2800W inverter/charger (pure sine wave)
• 12v/200AMP AGM battery in battery box (2 house batteries, 2 thruster/windlass batteries, 1 engine starter, 1 generator starter)
• Generator start battery (1)
• Master control panel (AC/DC circuit breakers)
• Bonded electrical system
• 120V AC outlets (14)
• 50amp 125/250V shore power connection at the bow and stern

Interior

• Teak and holly flooring throughout
• Satin finished teak paneling and cabinetry throughout with 7 coats of polyurethane
• Louvered doors for select lockers
• Routed teak fiddle on top of all teak finished cabinet
• Bent laminated trim on top of most cabinets (no miter joints)
• Cedar lined hanging lockers
• Book matched drawers and cabinetry
• All drawers dovetailed with full extension slides (soft close in the galley)
• Push button locks on al cabinets and drawers
• IMTRA LED lighting 12V throughout
• Wood venetian blinds
• Screens on all sliding windows and laminated safety glass
• Soft vinyl headliners - all attached with Velcro
• Ultraleather fabric for interior cushions
• Reverse cycle heat/air conditioning or forced air diesel heat throughout

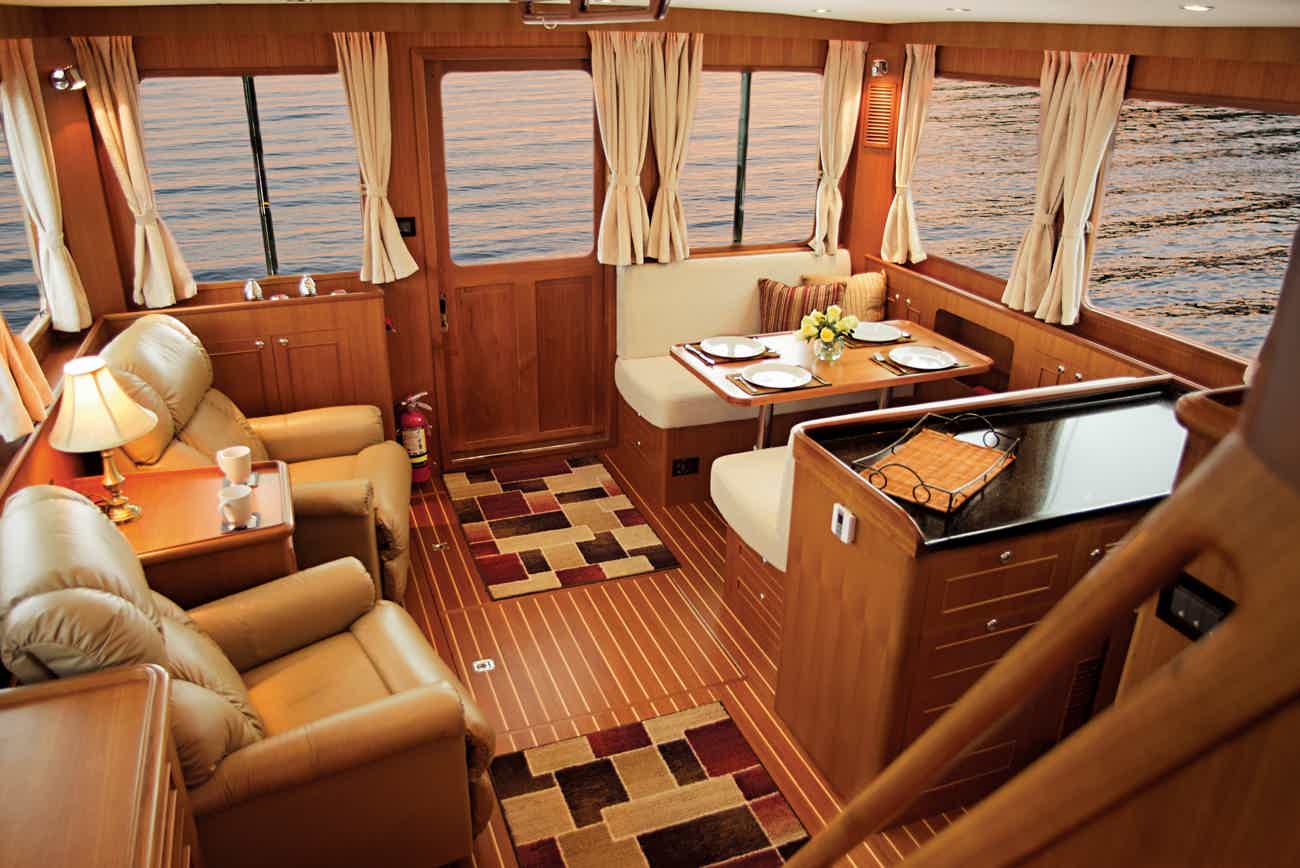

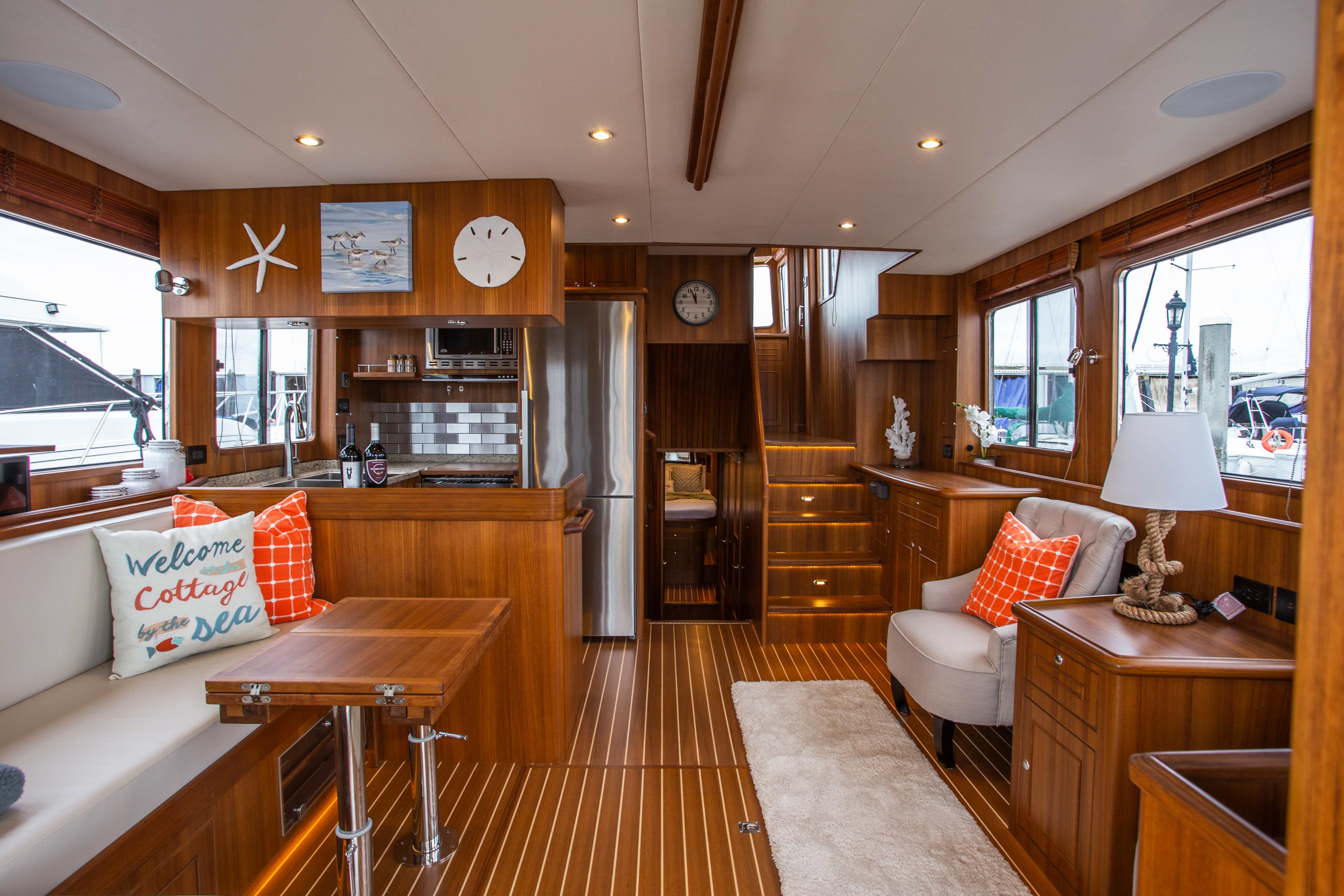

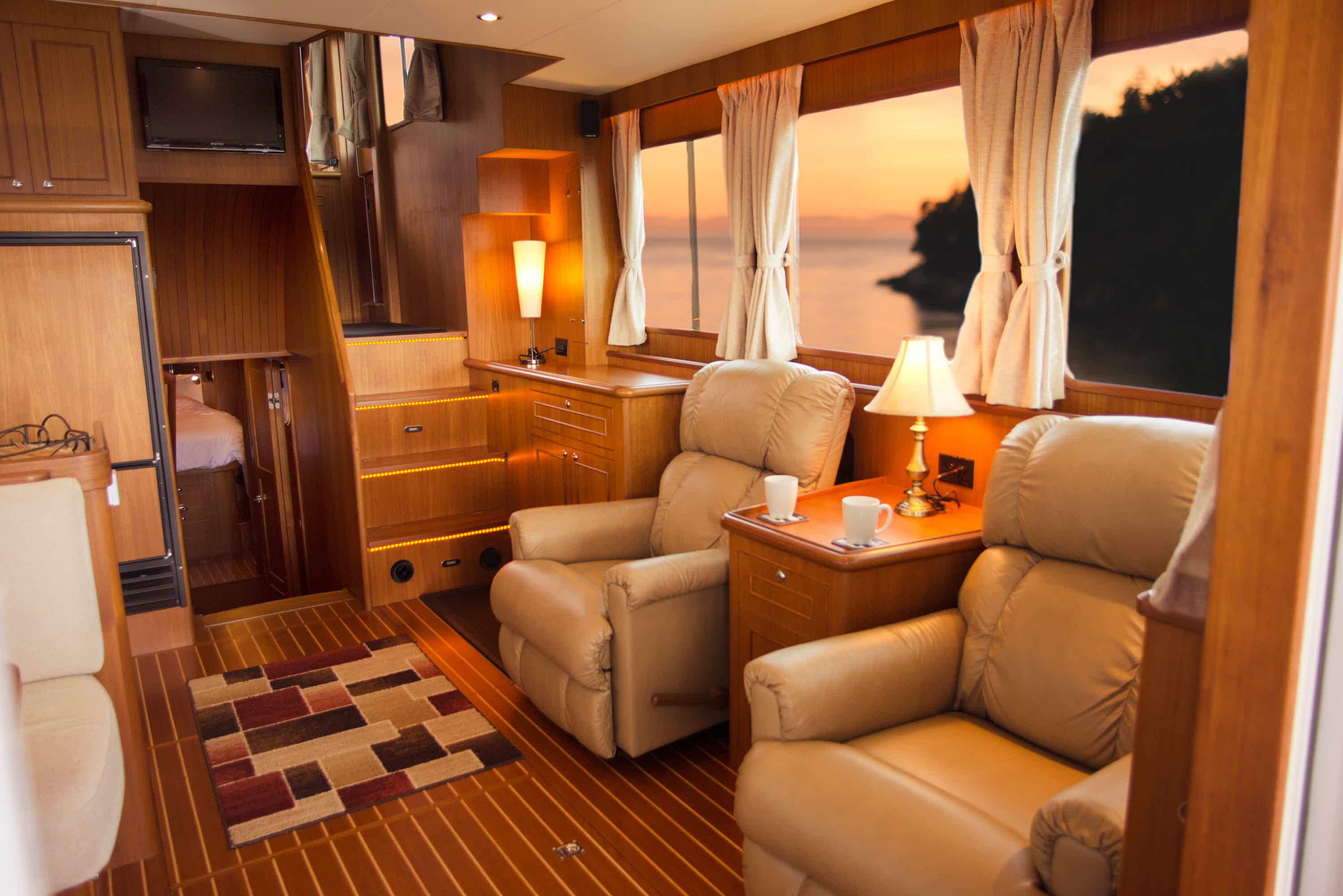

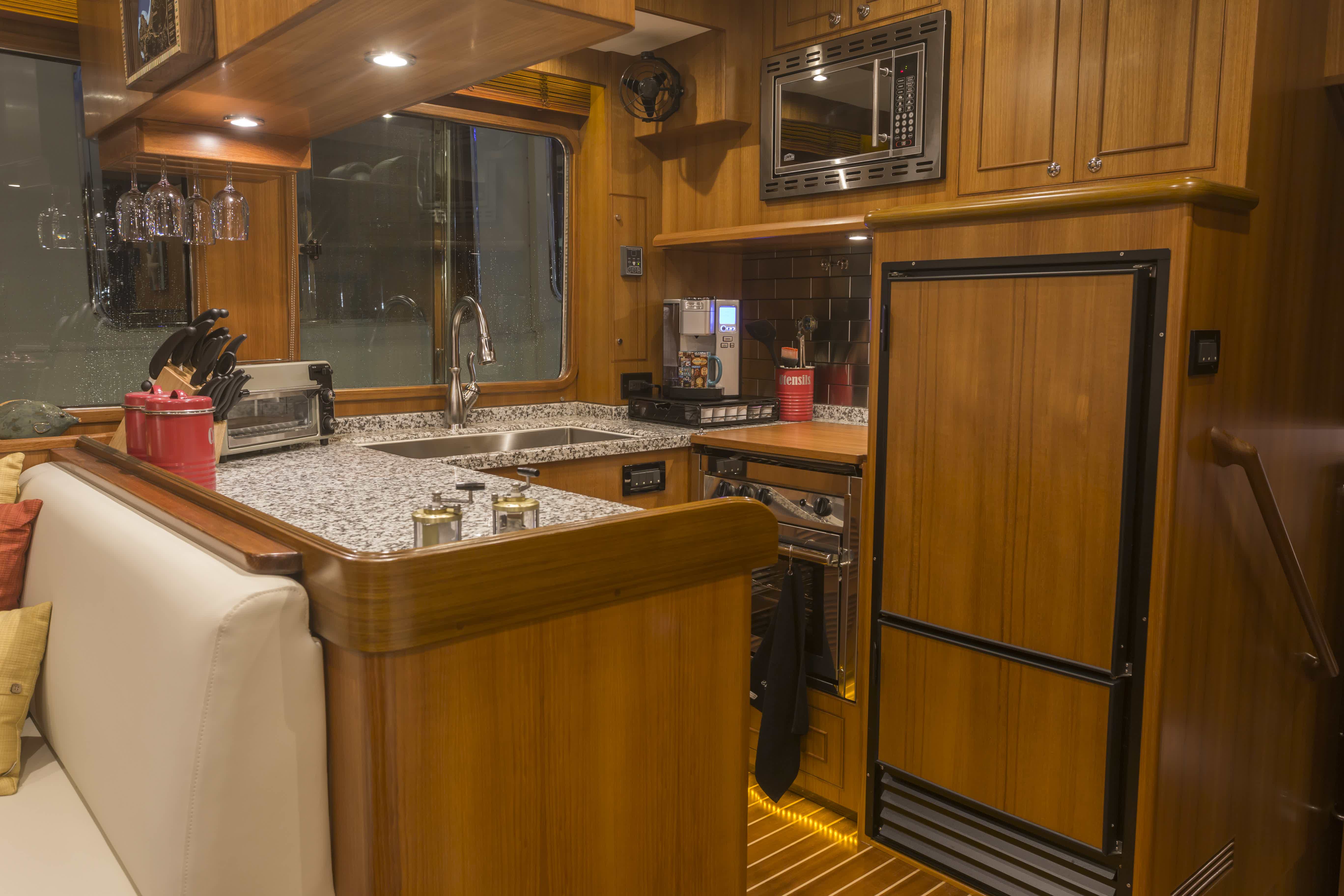

Salon, Dinette and Galley

Several layout options available

• A/C outlet (5) Reading lights (2)
• Small cabinet on starboard side so there is room for two free standing chairs or L shaped settee

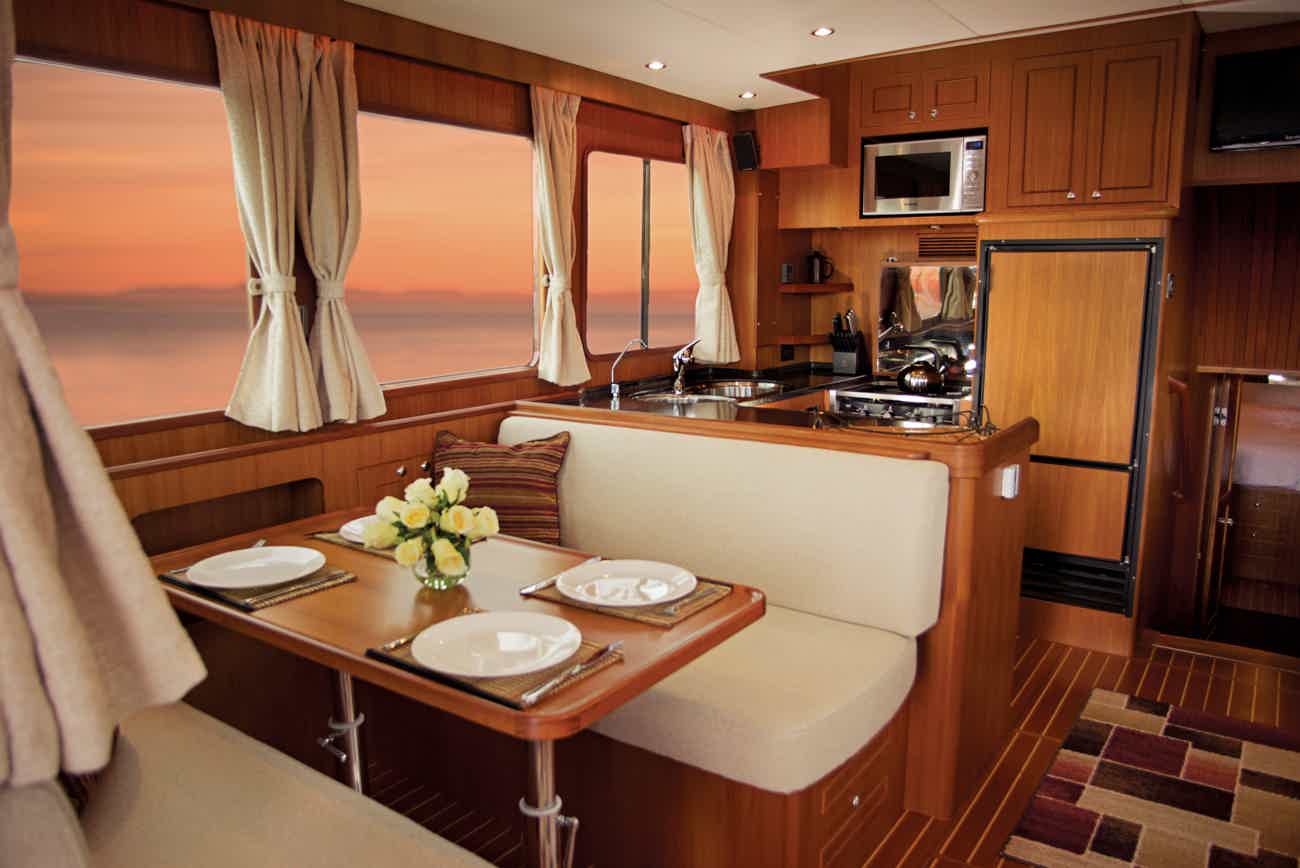

• Dinette with hi-low folding table that converts into a bed
• Pop up TV in TV cabinet port side of dinette
• Rich solid surface or granite countertop with raised edge
• Double SS sink
• Faucet with pullout spout - 3M water filter and spigot
• Seaward Electric or Propane stove w/ oven and stainless steel backsplash
• Summit fridge/freezer w/ stainless doors - freezer on the bottom
• Storage cabinet on top of refrigerator with AC outlet
• Microwave shelf with AC outlet
• Teak storage cabinet above stove
• Drawers in galley (6)
• Cabinets in galley (3) - "Magic Corner" hardware in corner cabinet for full and easy access to storage
• Exhaust fan beside the stove - vented outside
• Hatch that lifts on galley countertop (1)
• One ceiling hand rail in the salon
• Cabinet above galley countertop w/ wine glass holder and frosted glass doors

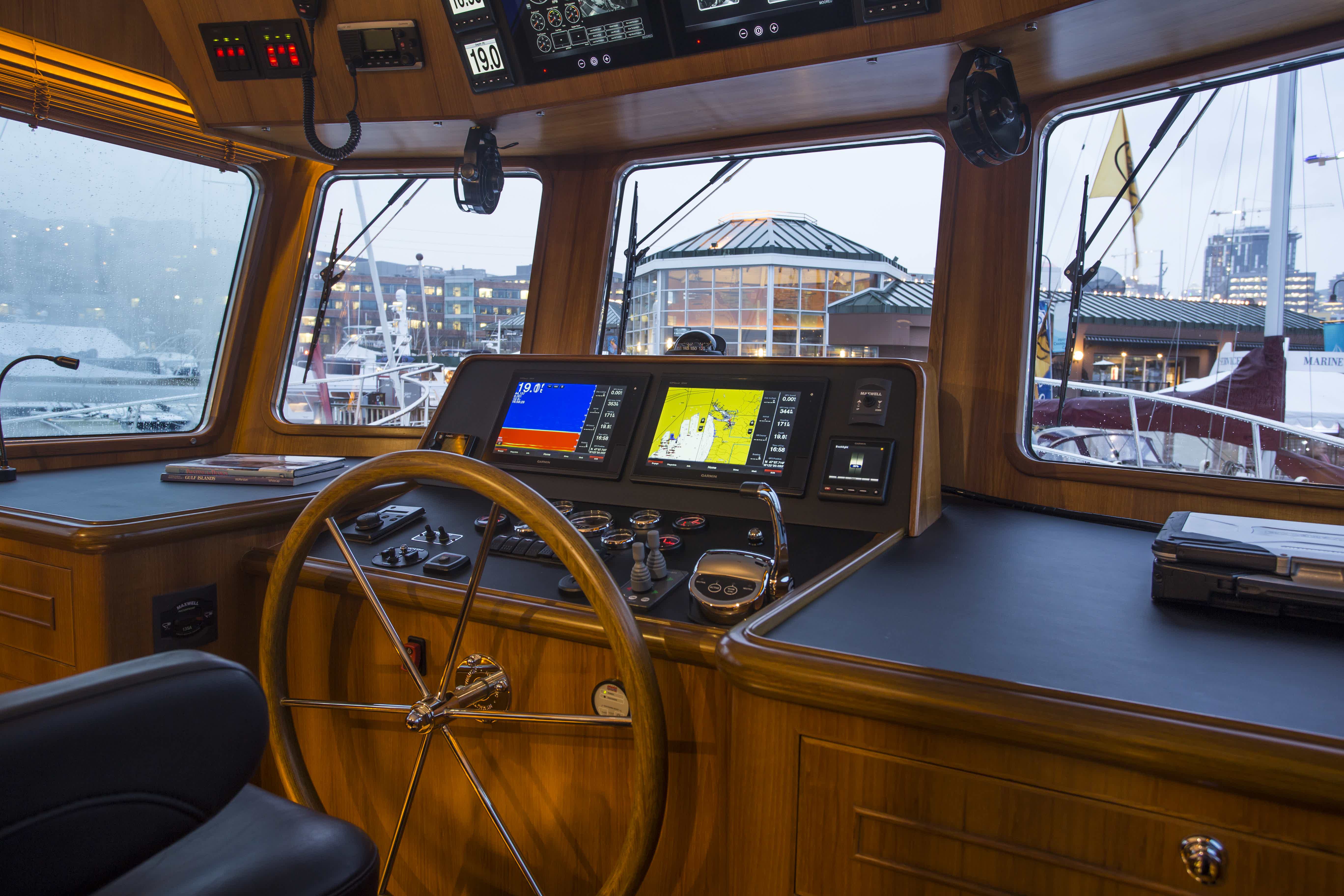

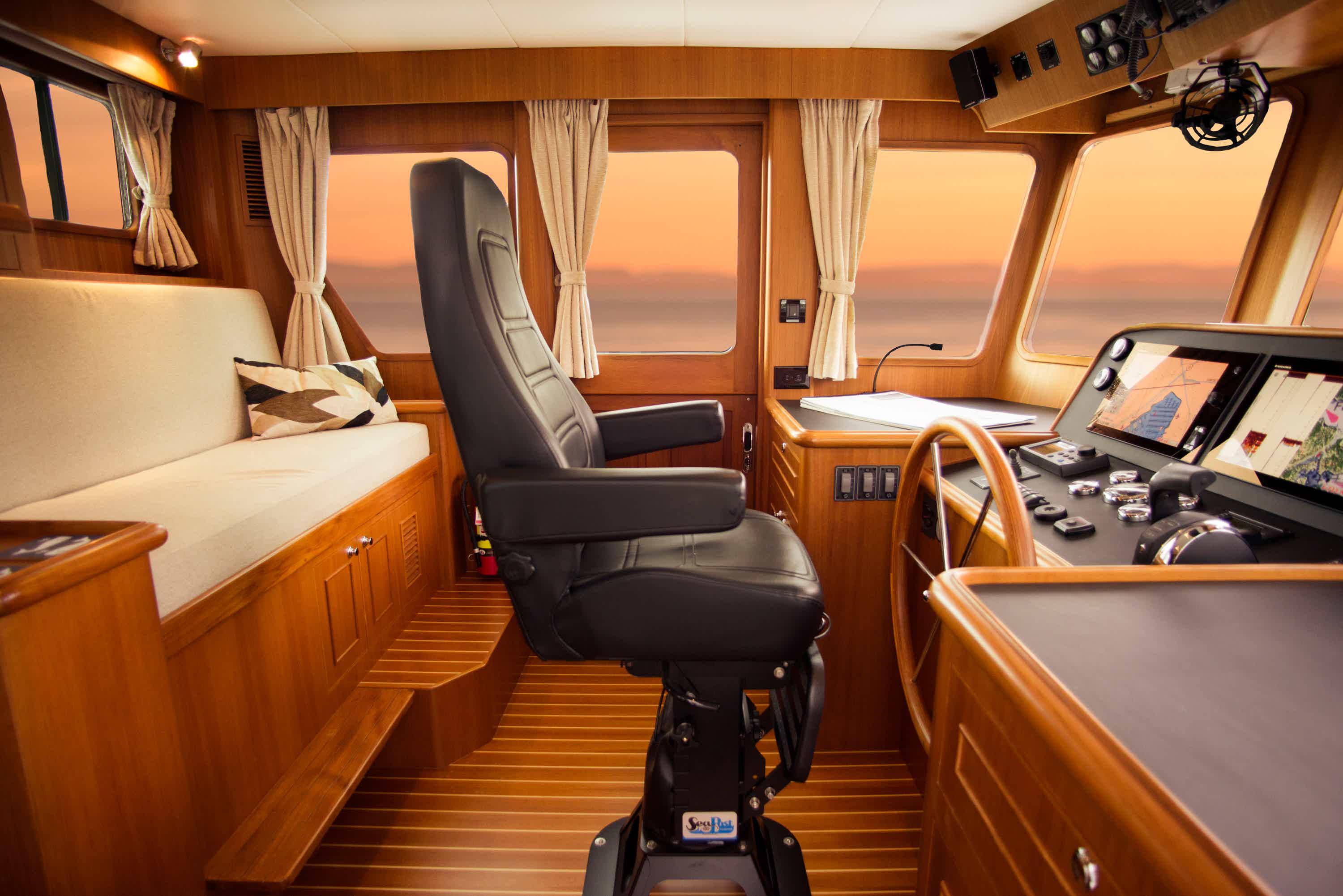

Pilothouse

• A/C outlet (2) DC outlet (1) Map Light (1)
• Aluminum locking, sliding door with teak interior liner (2)
• AC & DC electrical panels - Blue Sea
• Llebroc helm seat with 4" pedestal
• Cummins single lever ETS (Electronic throttle and shift)
• Engine gauges including fuel flow
• Windlass control
• Bow thruster control
• Fuel and water gauges
• Horn control
• Teak steering wheel
• Defrost fan (2)
• Windshield wiper (3)
• Windshield washer (3)
• Bench seat - Foot rest attached to bench seat
• Bookshelf on aft starboard side of settee or full length bench seat
• Table on SS stanchion
• Storage cabinet and drawer
• Reading light above bench seat (2)
• Aft window, opening, screened window
• A full set of Garmin electronics comes standard. Inquire for details as electronics change quickly.

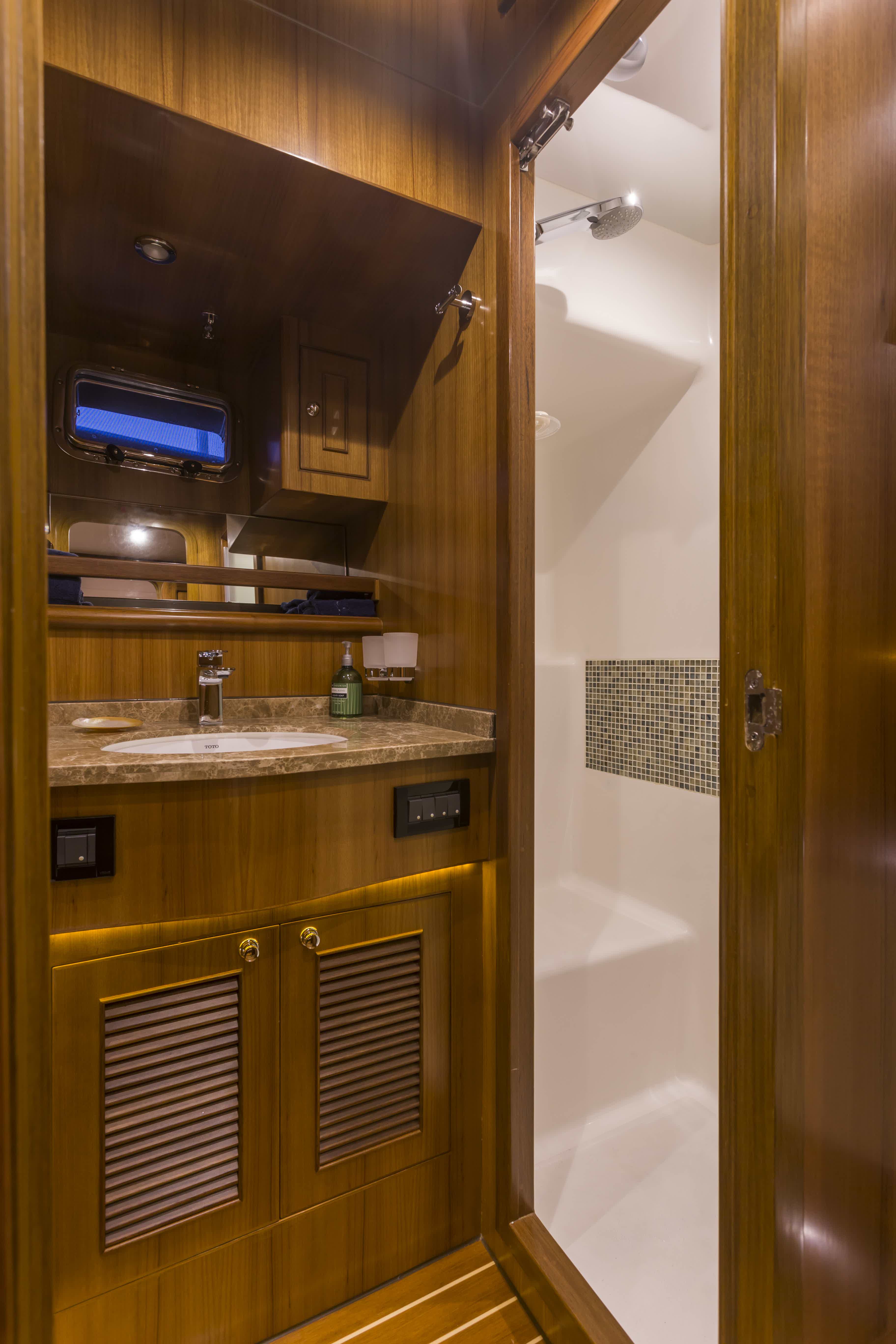

Head

• Teak head with teak and holly floors
• A/C outlet (1)
• Tecma toilet with fresh water flush
• Mirror
• Solid surface countertop or granite countertop
• Ceramic white undermount side or above mount green glass or white
• Shower stall - with exhaust fan - mosaic accent wall
• Shower control and nozzle
• Frosted glass shower door with NP logo
• Opening, screened porthole window (2)
• Scad Tech holding tank level gauge with external sensors
• Towel racks and other hardware
• Whale gray water gulper pump for shower drain

Guest Stateroom

• Bunk beds with removable ladder to help get into top bunk, standard twin bed or office or office w/ bunks
• A/C outlet (2)
• Opening, screened porthole window (2)
• Locker and hanging lockers depend on chosen layout
• Drawer layout depends on layout chosen

Laundry Room

• This closet in the hallway and can accommodate a washer/dryer, freezer or just be used for storage

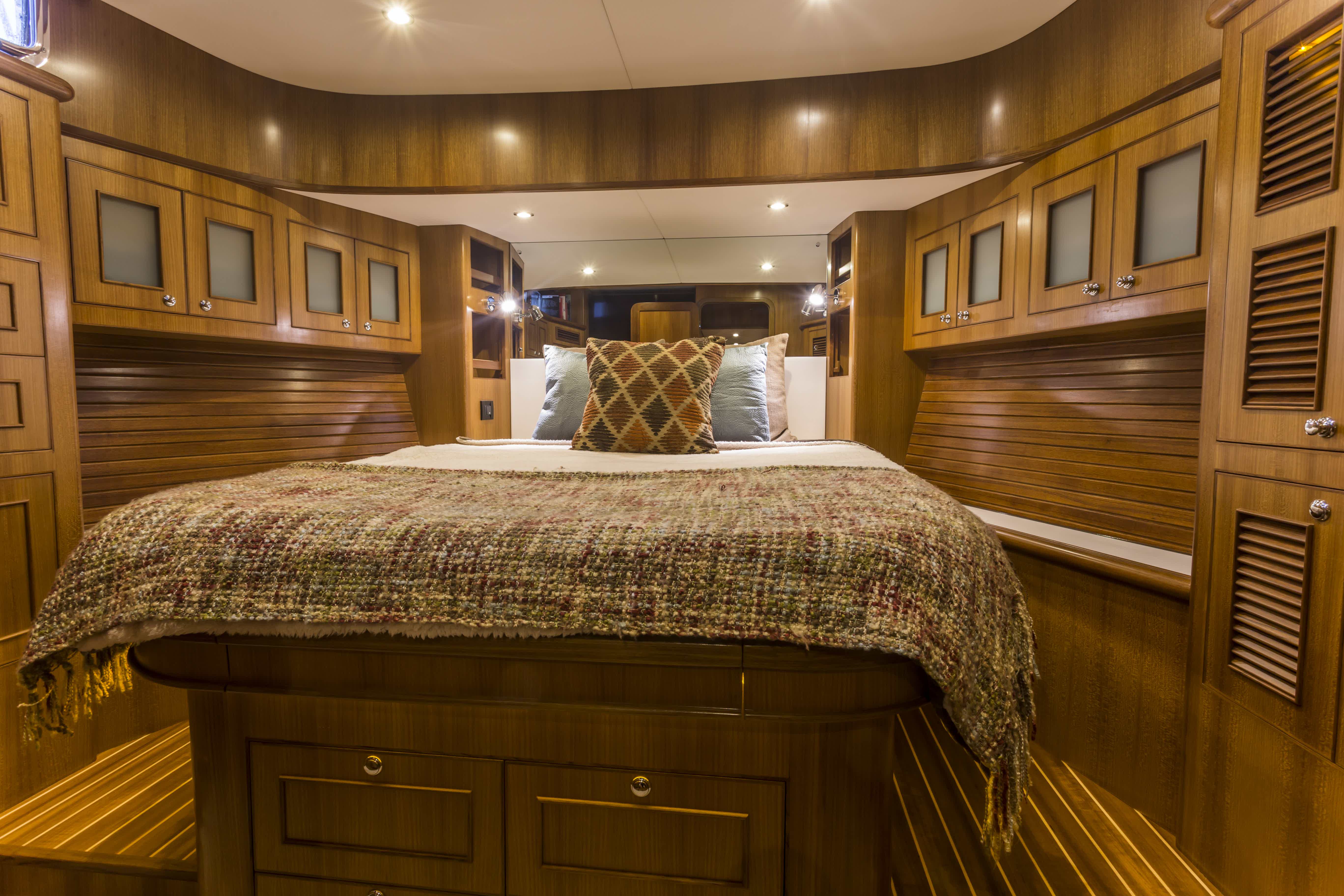

Master Stateroom

• A/C outlet (2)
• Queen Island bed
• 5" thick fabric covered foam mattress
• White headboard material with mirror above
• Reading light (2)
• Drawer under bed (4)
• Hanging locker (2)
• Other lockers (6)
• Other drawers (11)
• Opening, screened porthole window (4)
• Opening, screened overhead hatch (1)
• Second head available here - see North Pacific YouTube channel for a tour or request a diagram

Exterior Fittings and Equipment

• Stainless steel railing (top railing 1.5") and stanchions around all edges secured with bolts
• FRP no-skid deck on all deck surfaces
• SS mooring cleats (8) - 4 in cockpit, 2 midship, 2 at the bow +1 on each side of salon
• SS fuel, water and waste tank deck fittings
• SS portholes
• Tempered glass windows
• Stainless steel window frames
• Accent LED lighting around exterior

Cockpit

• Light (2)
• Hatch to access lazarette - gas assisted
• Stainless steel ladder leading to fly bridge - or ship loose with the boat
• Transom door leading to swim grid
• Bulwark door on starboard side
• Aluminum sliding door for along entry - teak insert for interior
• Locker on transom with fresh/sea water washdown outlet
• Locker on transom with shore power connector
• Fresh water shower
• Swim ladder
• SS aft upper deck supports (2)
• Flexiteek deck on swim platform and cockpit floor

Flybridge

• Dual helm seat - or two helm seats
• Stainless steel steering wheel
• Engine gauges including fuel flow on Cummins Smart Tach
• Cummins single lever ETS (Electronic throttle and shift)
• Windlass control
• Bow thruster control
• Hardtop with 4 overhead lights (17'2" from WL to top of hardtop)
• Courtesy light (2)
• D/C outlet (1)
• AC outlet on starboard side (1)
• Anchor light
• Navigation lights
• Stainless steel flag base
• Dual trumpet air horn
• Storage cabinet/propane locker on starboard side of helm seat
• Storage locker/seat (2)
• 4 fused 12V switches to control systems and lights on the flybridge
• Nick Jackson LP650 davit
• Flybridge drains take water right down to waterline (no dripping)
• Canvas cover for raised dash, dual helm seat & other seating
• Sunbrella material used for bench seat cushions
• A full set of Garmin electronics comes standard. Inquire for details as electronics change quickly.

Forward Walkaround

• Courtesy lights (3)
• Fresh & sea water washdown hose connector
• Windlass, Maxwell HRC10-8
• 280 ft of G4 high test galvanized chain (3/8")
• Chain locker divided in half
• Rocna 33 anchor
• Hatch to access storage locker at the front of the pilothouse (2)
• #316L polished, large diameter Sampson post

Other Equipment

• Side Power SE130, 24v bow thruster
• Emergency tiller
• Zincs (5)
• Extra gelcoat (about 1qt)
• Prewire for fuel transfer pump
• Pre-wiring for stereo system in salon, pilothouse - other areas upon request
• Fusion stereo system with speakers and controls in the salon and pilothouse

Contact Premier Yachting on 03 9041 6335 or 0411 277 824 for further information today.

Specifications

Retail Price	POA
Length	45′ 8″ / 13.9 m
Beam	13′ 8″ / 4.1 m
Draft	4′ 6″ / 1.4 m
Engine	1 x 355hp QSB 6.7L Cummins diesel
Cabin
Fuel Tank
Water Tank
Holding Tank
Berths
