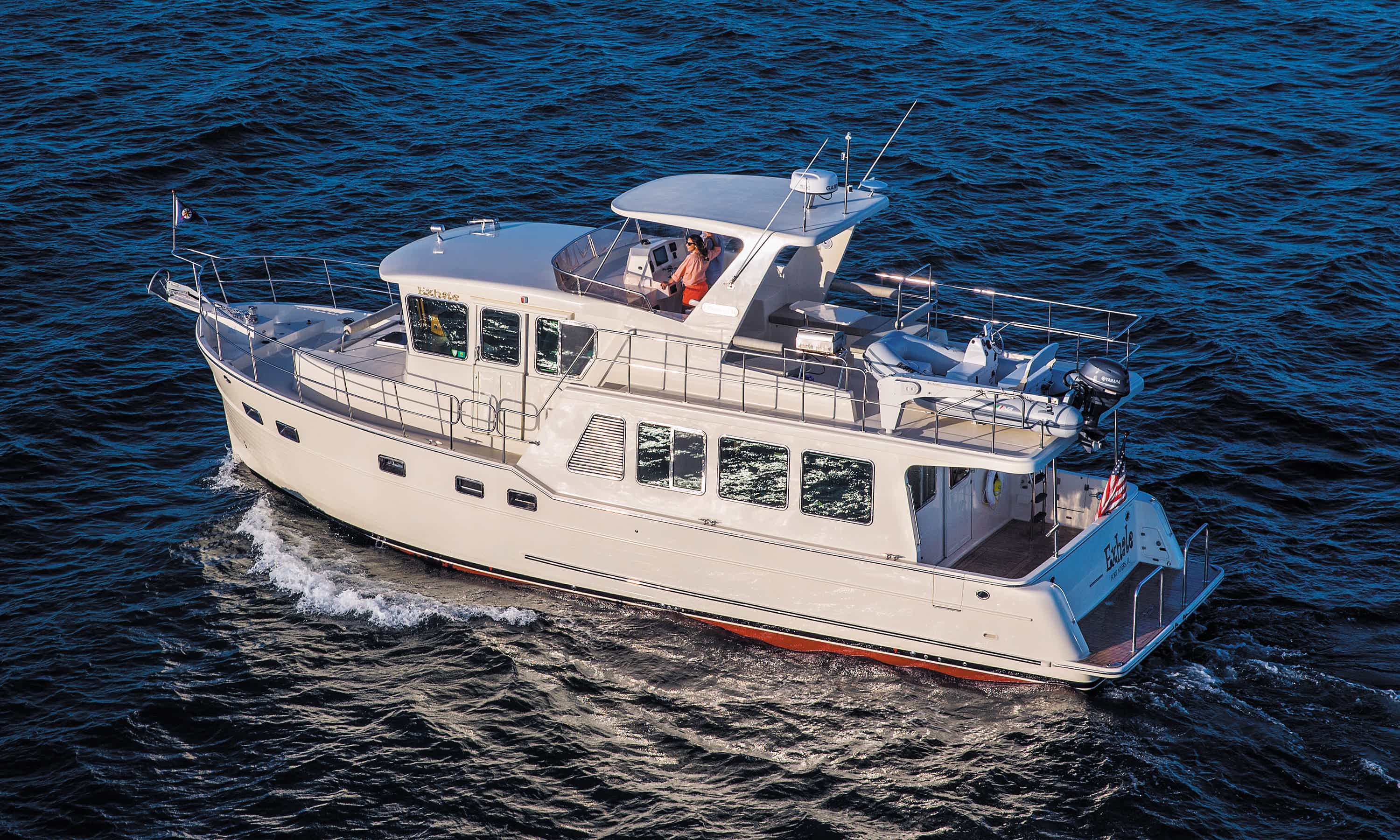

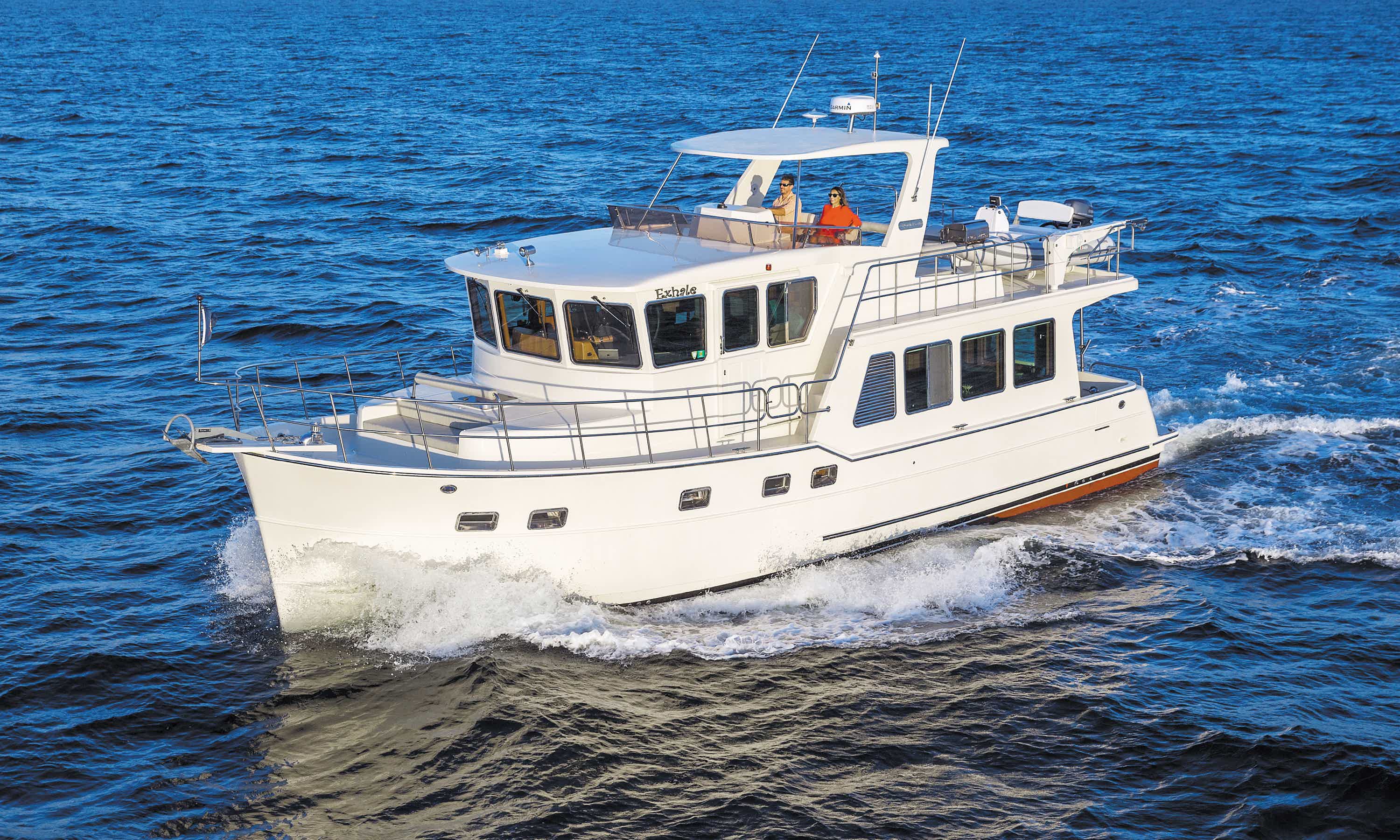

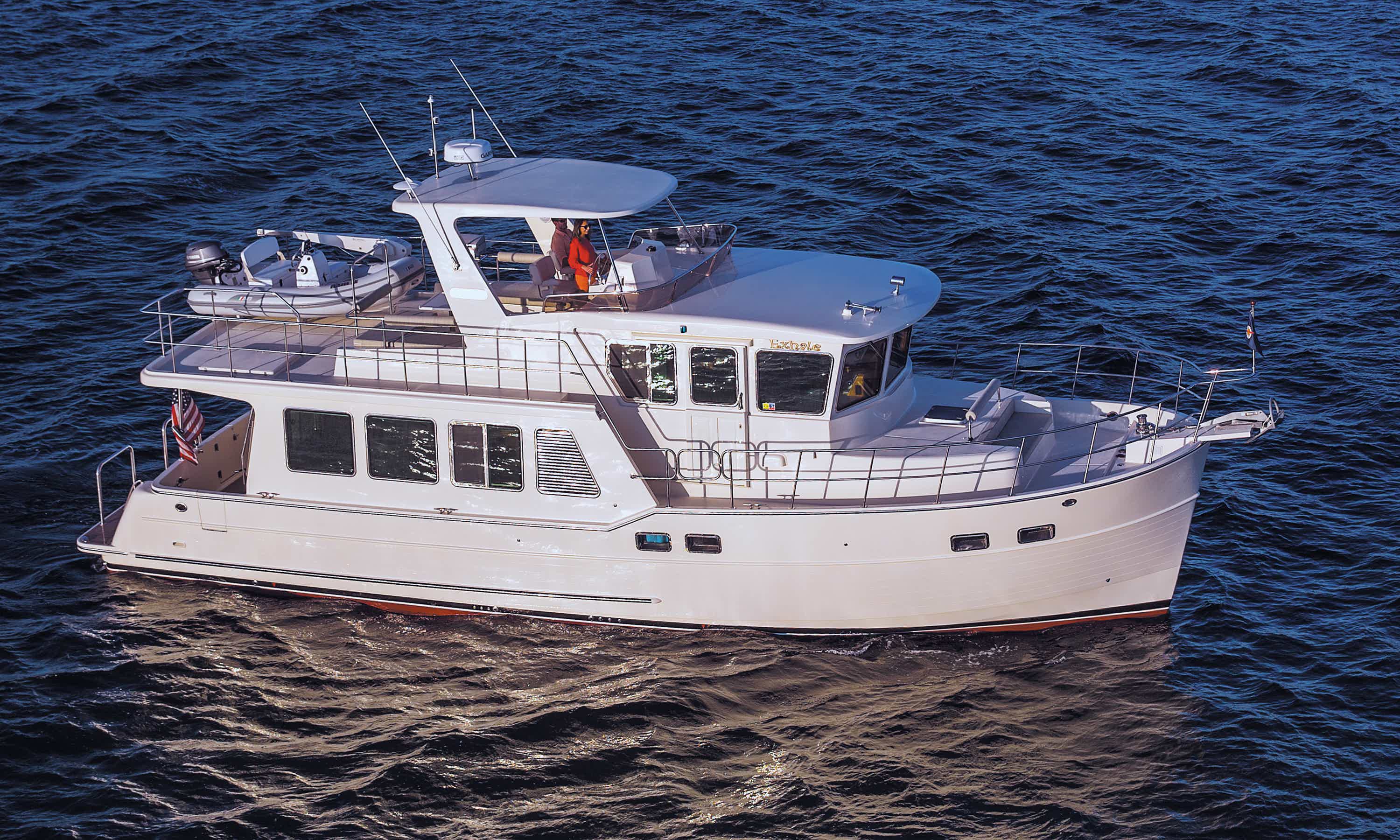

North Pacific Yachts 49' Pilothouse

Proven Quality; Refined Luxury

The flagship of the North Pacific fleet, the North Pacific 49′ Pilothouse encompasses everything that makes North Pacific Yachts great long range coastal trawlers.

Low-Maintenance, Rugged Exterior

• Solid, hand-laid fiberglass hull
• Superstructure cored primarily with synthetic honeycomb core including all decks
• DSM High UV gelcoat
• High polished #316L stainless steel

Luxury Awaits...

• Real teak and holly flooring throughout
• Satin-finished teak paneling and cabinetry with 9 coats of polyurethane for a perfectly soft finish
• IMTRA LED lighting, direct and indirect
• All drawers dovetailed with full extension slides
• Granite countertops
• Bent laminated and routed trim throughout
• Book-matched cabinetry
• Tasteful, lighter materials in select areas

Comprehensive, High-Quality Equipment

• Cummins 355 QSB6.7L engine
• Northern Lights generator
• Side-Power SE130 24v bow thruster
• Magnum MS2812 pure sine inverter/charger
• Maxwell windlass with G4 chain and Rocna anchor
• Nick Jackson davit
• Full set of Garmin electronics
• Fusion stereo system
• Premium water pumps, plumbing, sanitation, fixtures, fittings & ground tackle
• Much more...

Your Home On The Water

• Spacious & comfortable salon
• A galley you might even call a kitchen
• Comfortable & flexible guest stateroom (2 or 3 staterooms)
• Queen Island master stateroom bed (forward or midship)
• Well-appointed heads & separate shower stalls
• High ceilings & large windows throughout
• Carefully planned direct and indirect lighting throughout

Construction

• Solid, hand-laid fiberglass hull. Outer two layers are vinyl ester resin
• Superstructure cored primarily with closed cell foam - rigid PVC coring and/or resin soaked marine plywood squares where more strength is needed
• Fully integrated swim platform
• International paints micron Extra anti-fouling
• International paints epoxy barrier coating below water line - Vinyl Ester resin 2 outer layers of hull

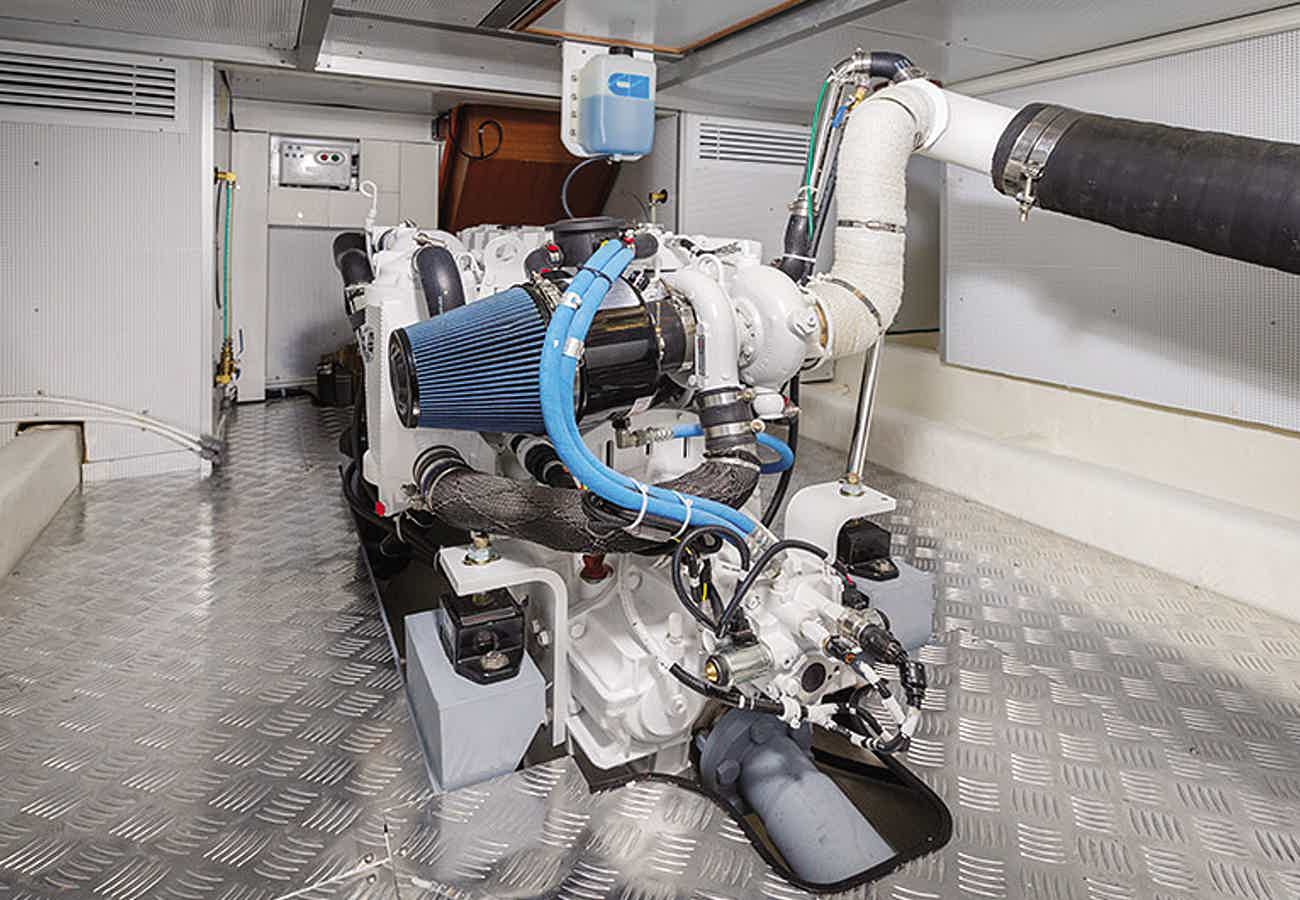

Engine Room, Propulsion and Fresh Water System

• 355hp Cummins QSB diesel engine with 160 amp alternator, ZF85A transmission
• High polished stainless steel engine mounts
• Engine room 2" sound insulation - 3 salon floor hatches for access or engine removal
• Aluminum non-skid plate floors
• Bright LED engine room light (4)
• Engine room blower
• Fiberglass fuel tanks (2 X 250 gallons - can be changed to 2X460) - fuel lines for engine 1/2 ID
• Stainless steel shaft - Aqua 17
• Dripless shaft seal - Tides Marine
• Precision 4 blade propeller
• Hynautic 2 station hydraulic steering
• Cummins DTS (digital throttle shift) control module
• Underwater exhaust system
• Sea cock and strainer on engine raw water intake
• Dual Racor fuel filter
• Automatic bilge pump (3),Manual bilge pump (1)
• Holding tank (65 GAL) w/ reliable Whale Black Water diaphragm macerator pump - Trident 10 year premium sanitation hose with top of tank pick up
• Fiberglass water tank, 1 X 250 gallons, installed under the hallway
• Fresh water system with dual variable speed diaphragm pumps and accumulator tank for quiet operation
• Color coded Pex plumbing with compression fittings throughout
• 240v, 20 gallon water heater in engine room
• Oil change system for engine and generator
• Seafire automatic engine shutdown and automatic fire extinguisher

Electrical

• Northern Lights genset w/ sound shield and water/gas separator 120/240V - size depends on heating/cooling selection
• Magnum MS2812 2800W inverter/charger (pure sine wave)
• 12v/200AMP AGM battery in battery box (3 house batteries, 2 thruster/windlass batteries, 1 engine starter, 1 generator starter)
• Generator start battery (1)
• Blue Sea master control panel (AC/DC circuit breakers)
• Bonded electrical system
• 120V AC outlets
• IMTRA LED lighting 12V throughout interior
• LED courtesy lights throughout interior and exterior
• 50 amp 125/250V shore power connection at the stern and at the bow

Interior

• Teak and holly flooring throughout
• Teak paneling and cabinetry throughout with at least 7 coats of poly urethane for a smooth finish
• Louvered doors on select cabinets - push buttons on all cabinet doors
• Cedar lined hanging lockers
• Routed cabinet tops, fiddles and other trim
• Bent lamination on selete trim instead of mitre joints
• Dovetailed drawers
• Full extension slides - soft close in galley - push button locks on all drawers
• Curtains or venetian blinds on all windows
• Screens on all sliding windows
• Soft vinyl headliners - all attached with Velcro
• Upgrade to Ultraleather material for all interior settee cushions
• Laminated safety glass on sliding windows
• Reverse cycle heat/air-conditioning or hydronic diesel heat throughout

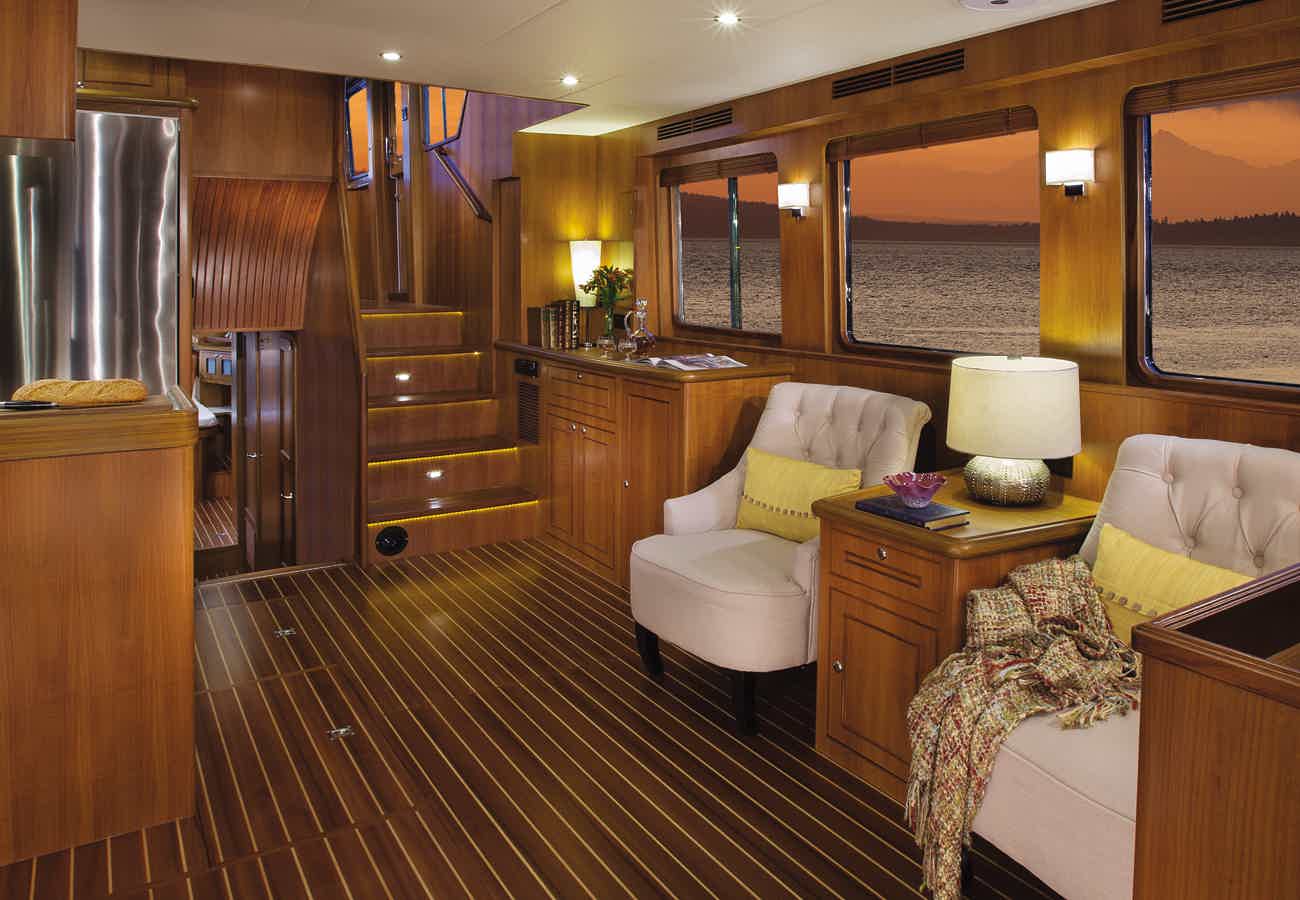

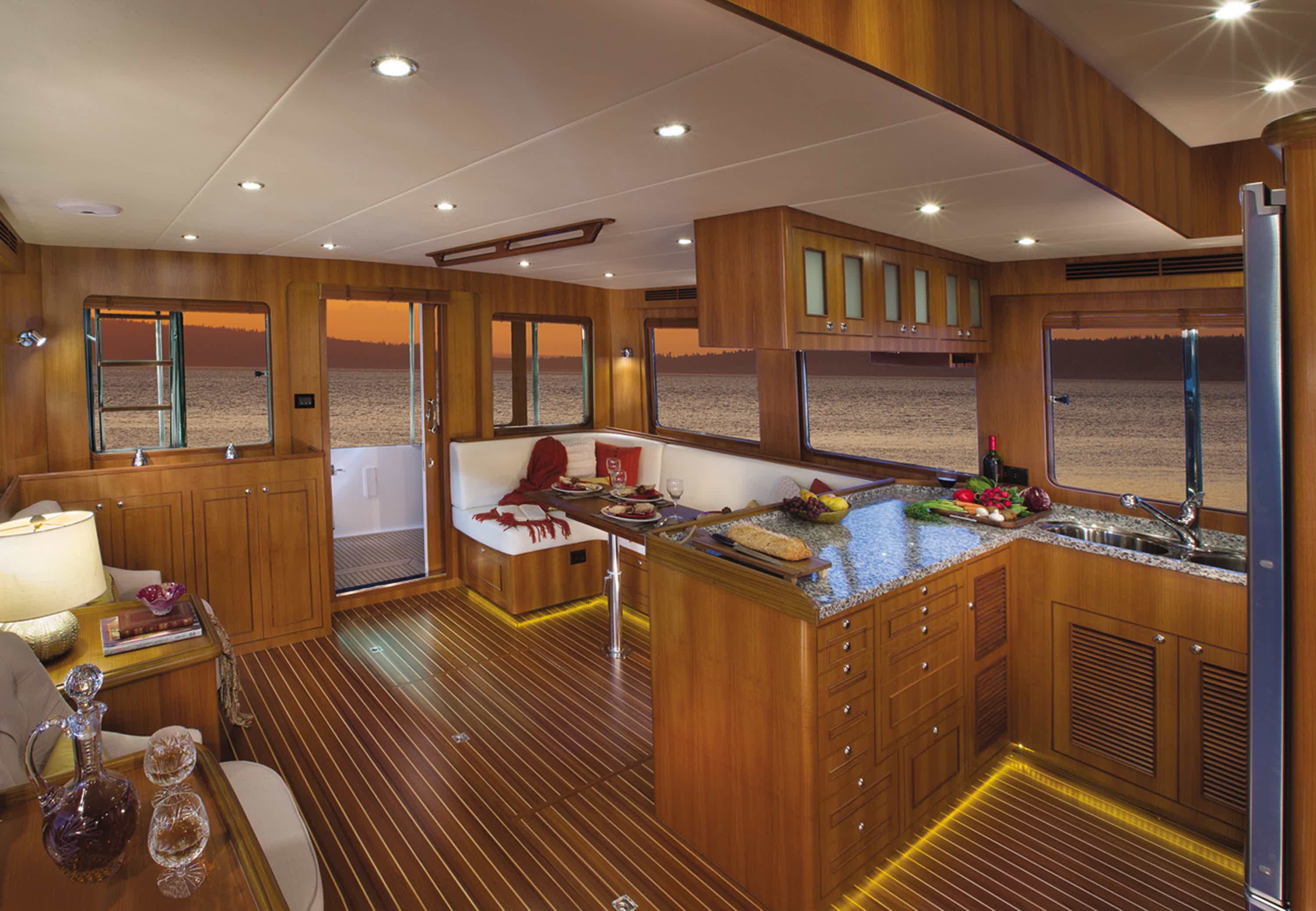

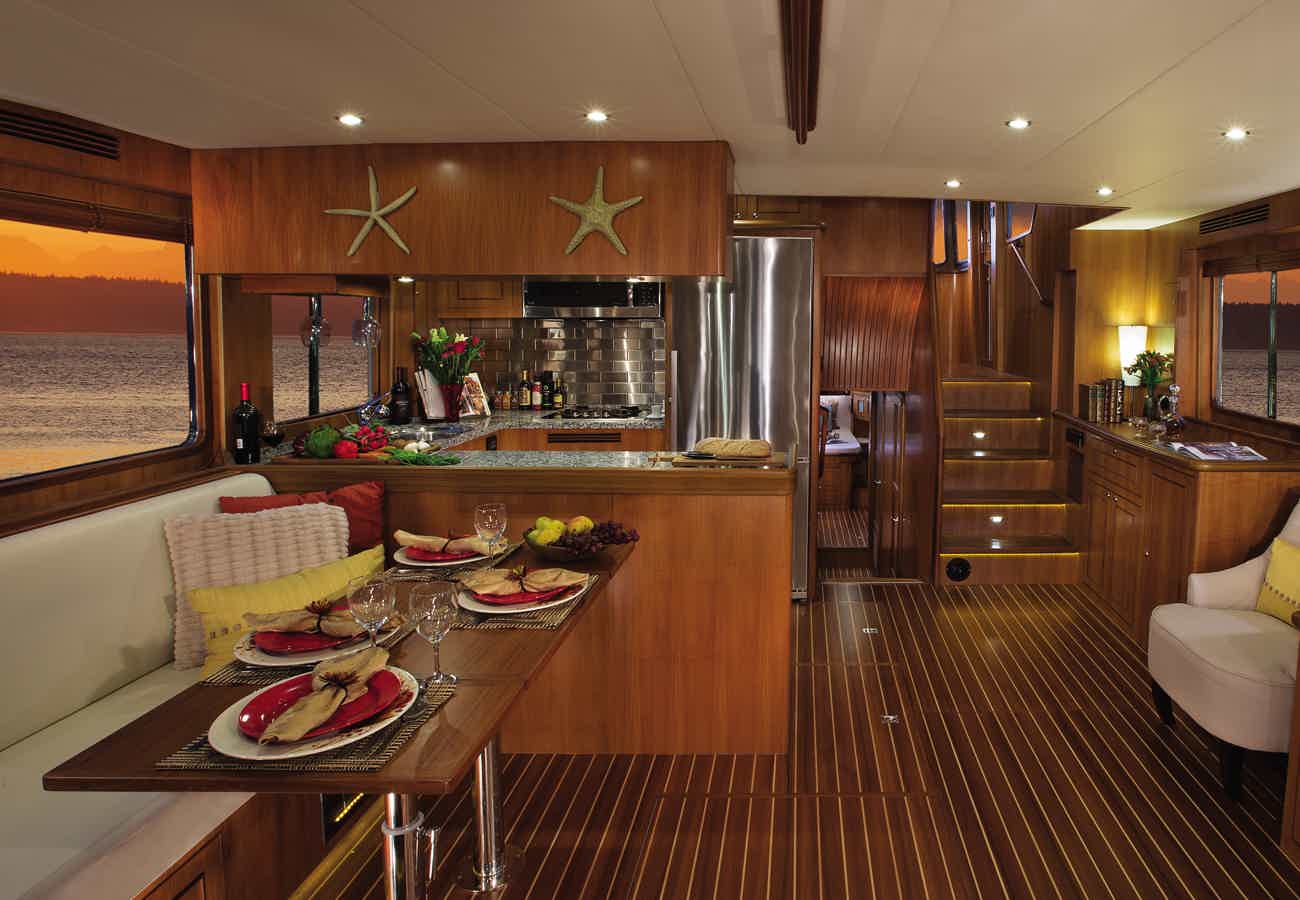

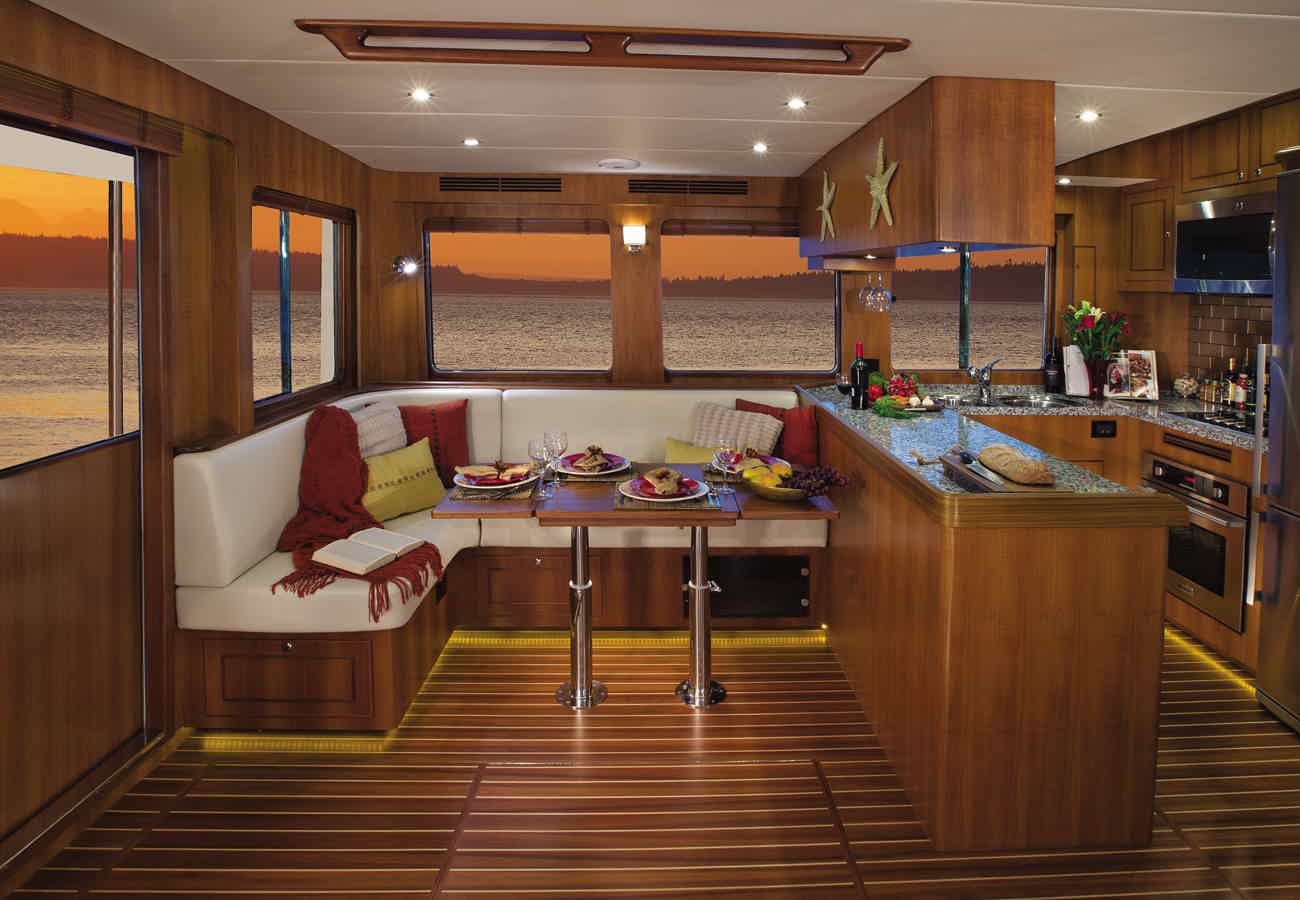

Salon, Dinette and Galley

Several other salon layouts available

• Exhaust fan above the stove - vented outside
• LED lights (11) plus accent rope lighting
• A/C outlet (5)
• Reading lights (2)
• Small cabinet in the middle of the starboard side with room for a recliner chair on each side
• Dinette with hi-low folding table that converts into a bed
• Granite, Meganite or quartz countertop with raised edge along aft section
• 30" double SS sink
• Faucet with pullout spout - 3M water filter with spigot
• Summit Electric or propane cooktop - stainless steel tile backsplash
• Broan 240v oven
• Summit stainless steel 17 cu.ft fridge/freezer
• GE convection microwave oven
• Drawers in galley (12)
• Cabinets in galley (# depends on layout) - Magic Corner hardware in cabinet next to sink (pull our storage)
• Exhaust fan above the stove - vented outside
• Hatch that lifts on galley countertop (1)
• Ceiling hand rail in salon
• Cabinet above galley countertop w/ wine glass holder and frosted back lit cabinet doors
• 50" HDLCD pop up TV port side of salon
• Double wall in 4 areas of the salon with wall sconce (3)

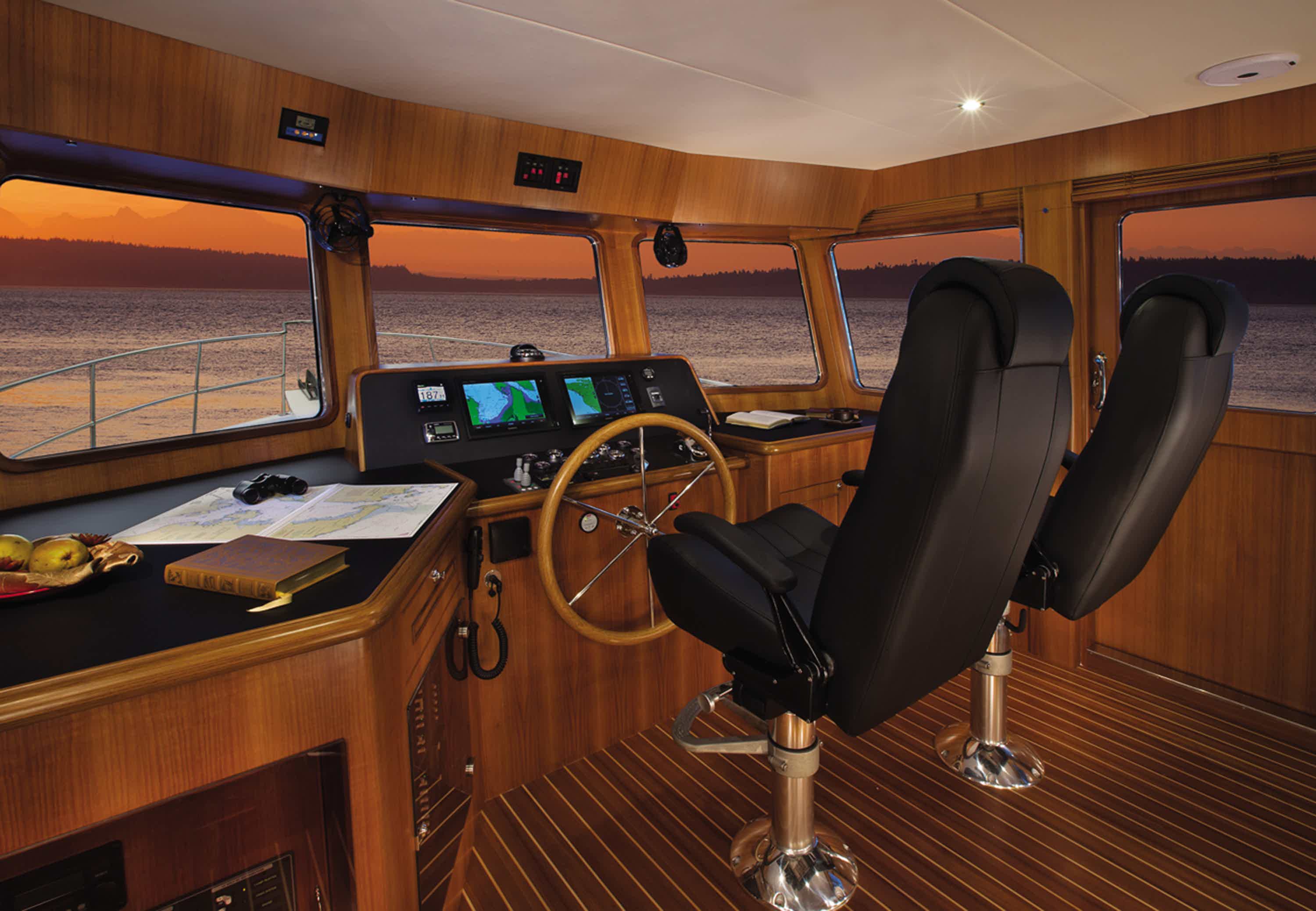

Pilothouse

• LED lights (6) plus accent rope lighting, red/white map light (1), red light on aft bulkhead (1)
• A/C outlet (2) DC outlet (1)
• Aluminum locking, sliding door with teak interior (2)
• AC & DC electrical panels - Blue Sea
• Stidd or Llebroc helm seat (2)
• Dash area covered with Ultraleather as well as area between windows and above helm
• Cummins single lever digital throttle and shift control
• Engine gauges including fuel flow on Cummins Smart Tach - plus Cummins Vessel View
• Windlass control
• Bow thruster control
• Electric fuel and water gauges
• Horn control
• Teak steering wheel
• Defrost fan (2)
• Windshield wiper (3) with variable intermittent control
• Windshield washer (3)
• L shaped bench seat that converts into a bed
• Folding table at bench seat
• Storage cabinets and drawers
• Reading light above bench seat (2)
• Aft window and aft side windows opening and screened
• Standard engine gauges including fuel flow
• A full set of Garmin electronics comes standard. Inquire for details as electronics change quickly.

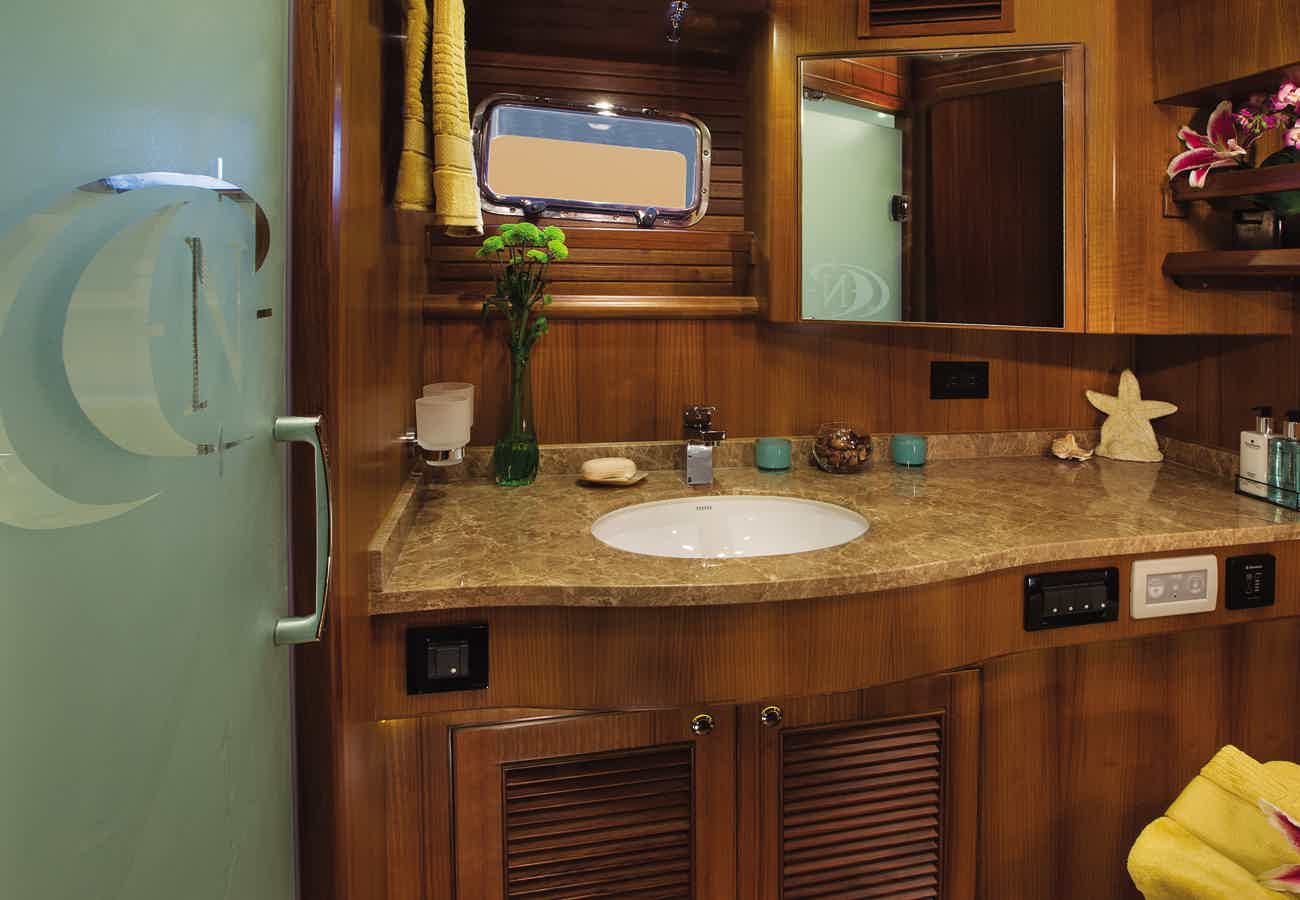

Head (2)

• LED light (2) plus accent rope lighting
• A/C outlet (1)
• Tecma toilet with fresh water flush
• Mirror
• Ceramic sink and chrome faucet
• Shower stall - with exhaust fan
• Shower control and nozzle - Tile mosaic accent wall
• Shower drains to automatic sump pump - Whale Gulper diaphragm pump
• Opening frosted shower glass door with NP logo
• Staron or granite countertop
• Opening, screened porthole window (2)
• Holding tank level gauge - Scad Tec with exterior tank sensors
• Towel racks and other hardware
• Teak finishing in head, fiberglass in the shower

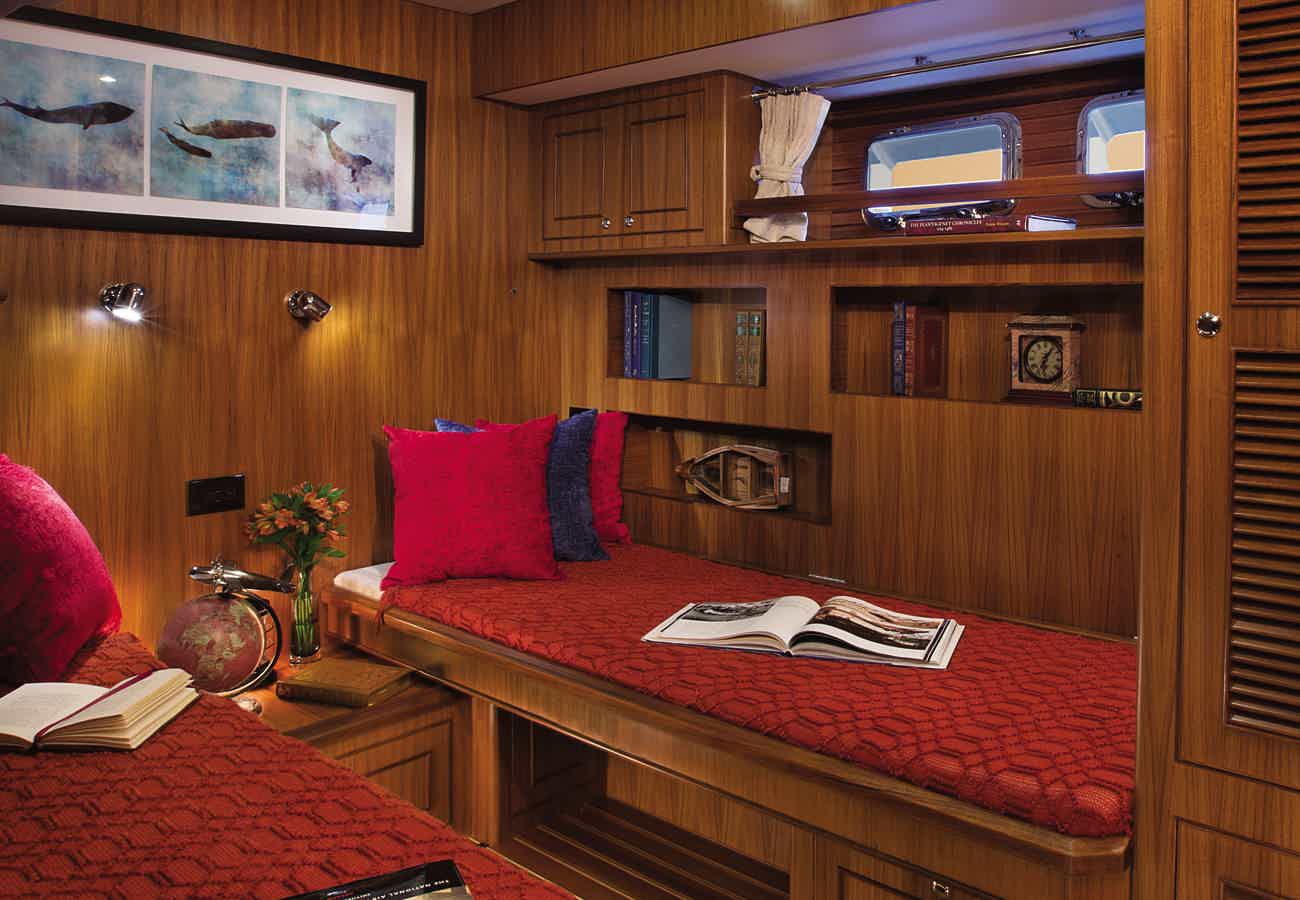

Guest Stateroom

Three stateroom option available

• Several different layout available (queen bed, 2 sliding beds, fold down bunks, 4 bunks, office/bunk)
• LED light (3) plus accent rope lighting
• A/C outlet (1)
• Opening, screened porthole window (2)
• Hanging locker, cabinets and drawers (numbers depend on bed choice)

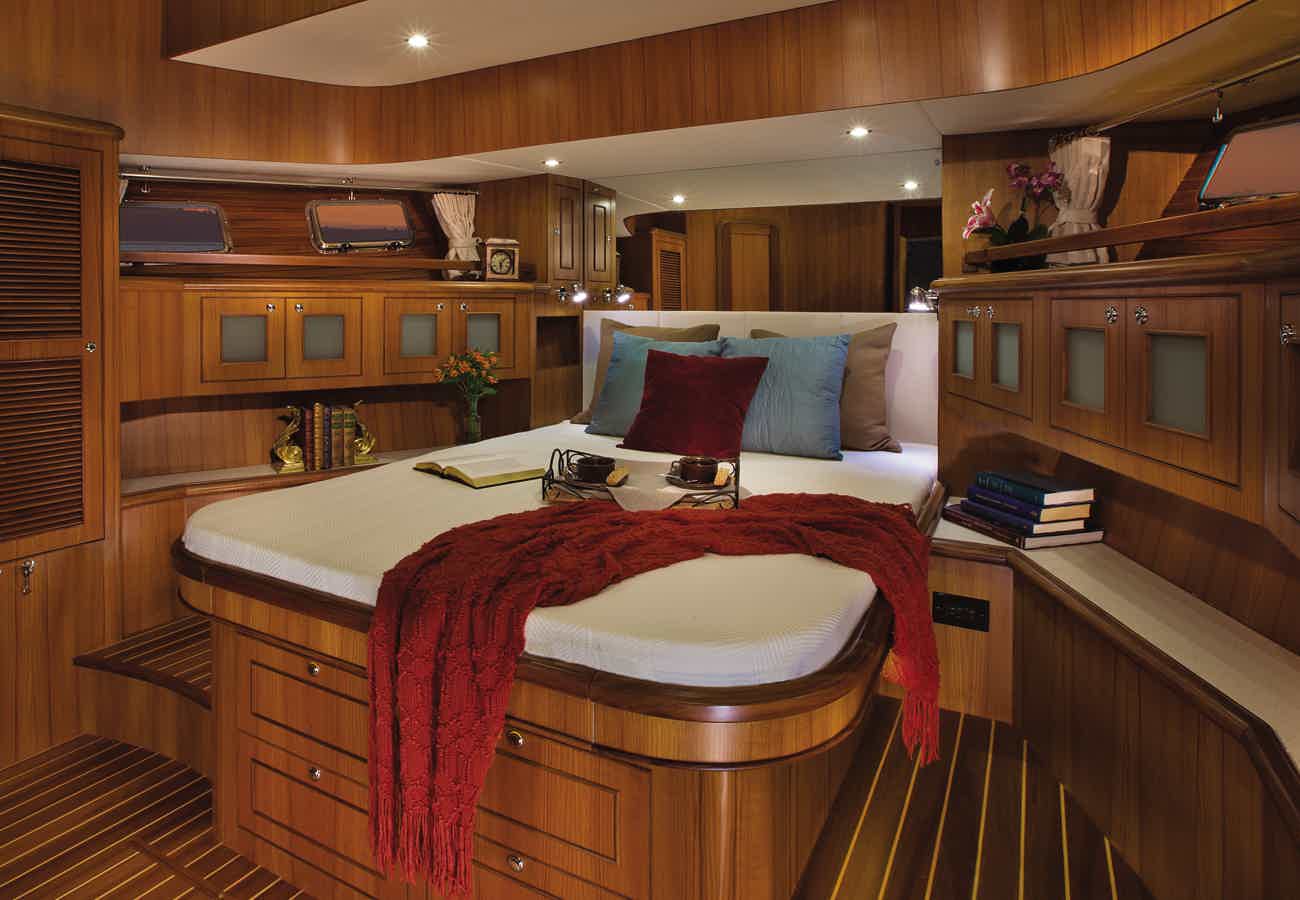

Master Stateroom

• LED light (4) plus accent rope lighting
• A/C outlet (2)
• Queen island bed
• 5" thick fabric covered foam mattress
• Reading light (2)
• Teak slats along walls on port and starboard side
• Cabinets along both sides of the bed with backlit frosted glass doors
• Large hanging locker (2) other locker (3)
• Drawers(8)
• Opening, screened porthole window (4)
• Opening, screened overhead hatch (1)
• Linen closet starboard side of hallway just aft of master stateroom (can install washer/dryer here or washer and dryer or washer/dryer and freezer etc.)

Exterior Fittings and Equipment

• #316L stainless steel railing & stanchions with 1.5" top rail - bolted into aluminum backing plates - highly polished
• FRP no-skid deck on all deck surfaces
• #316L SS mooring cleats (8) - 4 in cockpit, 2 midship, 2 at the bow +1 on each side of salon
• SS fuel, water and waste tank deck fittings
• #316L SS portholes
• Safety glass windows
• Stainless steel window frames

Cockpit

• Light (2)
• Courtesy light (2)
• Hatch to access lazarette - gas assisted
• Stainless steel ladder leading to fly bridge, starboard side - Attach ladder or ship loose with the boat
• Transom door leading to swim grid
• Bulwark door on port and starboard side
• Painted aluminum sliding door with teak inside - access to salon
• Locker on transom with fresh/sea water wash-down outlet
• Locker on transom with Glendinning power cable retractor and 65' cable
• Fresh water shower
• Swim ladder
• Extra SS aft upper deck supports (2)
• Access hatch to large lazarette
• Fiberglass platform to mount steering mechanism
• Dripless rudder bearing
• Flexiteek deck on cockpit floor and swim platform
• Flexiteek deck on swim platform

Flybridge

• Stidd or Llebroc helm seat (2)
• L shaped seat with table and bench seat - storage underneath
• Stainless steel steering wheel
• Engine gauges
• Cummins single lever digital throttle and shift engine control
• Windlass control
• Bow thruster control
• Hardtop with 4 overhead lights (17'4" from WL to top of hardtop)
• Courtesy light (2)
• D/C outlet (1)
• AC outlet on starboard side (1)
• Anchor light - LED
• Hella NaviLed LED navigation lights
• Stainless steel flag base
• Dual trumpet air horn
• Storage cabinet/propane locker on starboard side of helm seat
• 4 fused 12V switches to control systems and lights on the flybridge
• Sunbrella canvas cover for dual helm seat, instrument consul and all exterior seating
• Nick Jackson mini hydraulic 1000 davit with power luffing and manual rotation
• A full set of Garmin electronics comes standard. Inquire for details as electronics change quickly.

Forward Walk Around

• Courtesy lights (3)
• Fresh & sea water wash-down hose connector
• Windlass - Muir VRC2500
• 280 ft. of 3/8" G4 high-test galvanized chain - Chain locker divided in half
• Rocna 40 (88#) anchor
• Large diameter #316L polished stainless steel sampson post

Other Equipment

• Side-Power SE170 24V bow thruster
• Emergency tiller
• Zincs (5)
• Extra gel coat (about 1qt)
• Fusion stereo system - 3 stereo controls (salon, pilothouse, flybridge), amplifier, 2, 260W speakers in the salon, 2 speakers in the pilothouse and 2 on the flybridge.

Contact Premier Yachting on 03 9041 6335 or 0411 277 824 for further information today.

Specifications

Retail Price	POA
Length	51′4″ / 15.6 m
Beam	15′4″ / 4.6 m
Draft	4′10″ / 1.5 m
Engine	355 hp QSB 6.7L Cummins diesel engine
Cabin
Fuel Tank
Water Tank
Holding Tank
Berths
Extra Features
