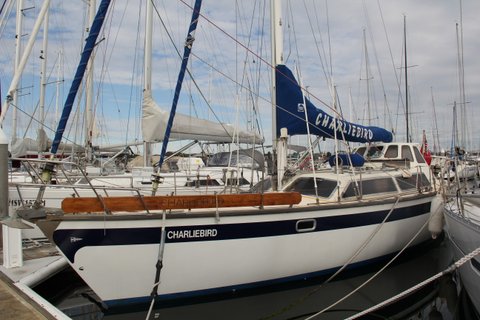

Adams Concept 40

This timeless Adams design is ready for their next owners.

Rebuilt and re-launched in 1999.
Re rigged 2020.

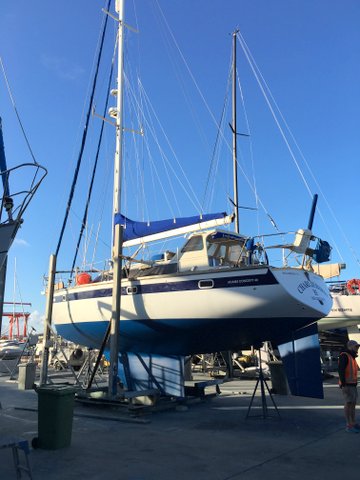

Anti fouled Sept 24

INVENTORY AND SYSTEMS

• STANDING RIGGING - Alspar deck-stepped MAST, Selden single line reefing BOOM, sprung strut BOOM VANG, constant attached SPINNAKER POLE. Twin spreader S/Steel wire standing rigging with fixed cutter stay and corresponding running moveable back stays.
• Yankee Headsail + older spare. Staysail + older spare.
• Trysail {Orange) NEW.
• Assymmetric Spinnaker with Snuffer.
• WINCHES- ARCO Self Tailing including two Primary and two secondary Sheet Winches, four Cabin top Halyard Winches. (inc, an Electric 1200W single speed Winch.)
• HULL - G.R.P. with Balsa cored Deck. Integral Fresh Water Tank 1300 L., divided into two separate tanks of 900 & 400 L. Deep Bilge with two hand Pumps and an Auto Electric Pump.
• G.R.P. encapsulated 4.5 Tonnes of lead in Keel. Forward collision Bulkhead. Bespoke G.R.P. Dodger. All Cabin lights polycarbonate material.

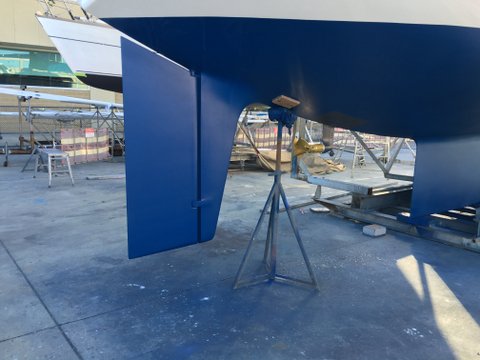

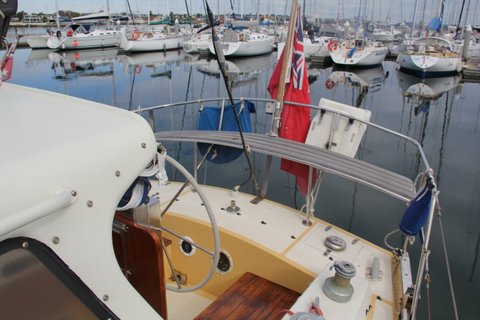

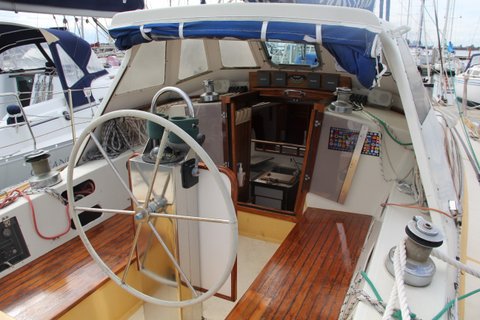

• STEERING - Skeg hung RUDDER, Edson Bourdon cable pull - pull system to bespoke
• Stainless steel Pedestal with integral chain drive system Coursemaster Auto Pilot S/steel emergency Tiller armcontrolled by deck winches. Danforth 200mm adjusted COMPASS.
• FRESH WATER SYSTEM -Two separate integral Tanks, 900 land 400 L switchable to electric PressurePump and large Filter. Galley

• GROUND TACKLE & MOORING - MUIR VRC2500 ( 1200W) Electric Anchor Winch
• control switches on FWD Deck and cockpit panel. 50 M x 8 mm short link Gal. CHAIN, 100 M x 3- strand 20mm dia. Nylon Anchor Cable . Rubber and rope Snubber. ANCHORS - CQR (2), DANFORTH, REEF, FISHERMANS, DROGUE and BUOY.
• Various lengths made up Nylon Mooring Lines, Heavy Oregon BARGE BOARD,
• EMERGENCY & SAFETY EQUIPMENT- BEAUFORT 8- man LIFERAFT in deck
• cradle with HAMMAR Hydro-static Release. Set up for Coastal Cruising, weather Cover. EPIRB - GME 403G 406 MHz with built-in GPS. Registered AMSA.
• ELECRTICAL SYSTEMS - -

• 240 VOLT A.C. - Shore power inlet to Guess GALVANIC ISOLATOR, NEUTRAL BUSS and DISTRIBUTIONBOARD with RCD and six Circuit Breakers. Five double Power outlets, Sharp 800 W MICROWAVE OVEN ,9 Edson HOTWATERSERVICE and Freedom 20 INVERTER
• ( 2000 W) / BATTERY CHARGER 100 amp/ hour controlled by a Heart Interface/ Xantrex LINK 2000 controller.Shore Power ISOLATOR SWITCH_ ( See circuit diagram CB - E/2 )
• 12 VOLT D.C. - Batteries- Two x 6 Volt TROJAN TlOS deep cycle in Series as HOUSE SYSTEM. -Two x 12 Volt N120P in Parallel) as ENGINE SYSTEM.
•  Freedom 20 shore power BATTERY CHARGER controlled by a HEART INTERFACE LINK 2000 Controller

( 3) ELECTRONICS BANK -

INSTRUMENTS- Raymarine ST 60: Wind, Log, Speed and Depthsounder intergrated with GPS.

GPS CHARTPLOTTER - Raychart 320 with C- Map.

AUTO PILOT - Coursemaster CM 300 used as interior and Exterior Steering. RADAR -Anritsu RA 772 intergrated with GPS.

RADIOS - HF learn IC 700 AUST with Auto Tuner, Back Stay Antenna and emergency Whip Antenna. VHF lcomIC M80. AWA Teleradio 27 MHz AM-SSB Transceiver.

STERO RADIO/ CD PLAYER- GME GR 966 inc. TV Antenna {Mast).

ACMA Licensed Ship Station - CHARLIEBIRD VK 4139.

ENGINE FUEL SYSTEM - ( DIESEL OIL) Two X 200 L. 5/steel TANKS (Total 400L.)

LP. GAS SYSTEM -THREE X 10kg. galvanised GAS BOTTLES, Two in vented aft locker, connected to a gimballed Broadwater Marine STOVE, ( Cutter Model ) two burner top with fiddles, Auto Oven with gimba! lock. Electric ignition, BEP Electronic GAS SNIFFER in bilge.

• GALLEY - Fitted with an American S/ steel double-bowl SINK, equipped with a chopping Board and Frame for plastic bag garbage disposal. Whale Refrigerator Cabinet drain Foot PUMP, Sharp 800W Carousel Microwave OVEN. Edson 18 Model 245B bronze Hand Bilge PUMP (18 GPM) mounted under Cabin Sole.

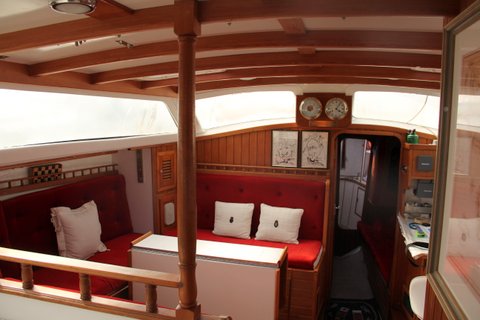

• Drop side DINING TABLE for six people with centre for Wine, Cutlery and Sauce CRUET.
• Folding Cockpit Breakfast TABLE.
• Polished S/steel MIRRORS throughout, heavy S/steel Rubbing STRAKES on raised Gunwales. Fourteen ( 14)Lewmar Opening HATCHES & PORT LIGHTS with insect screens.

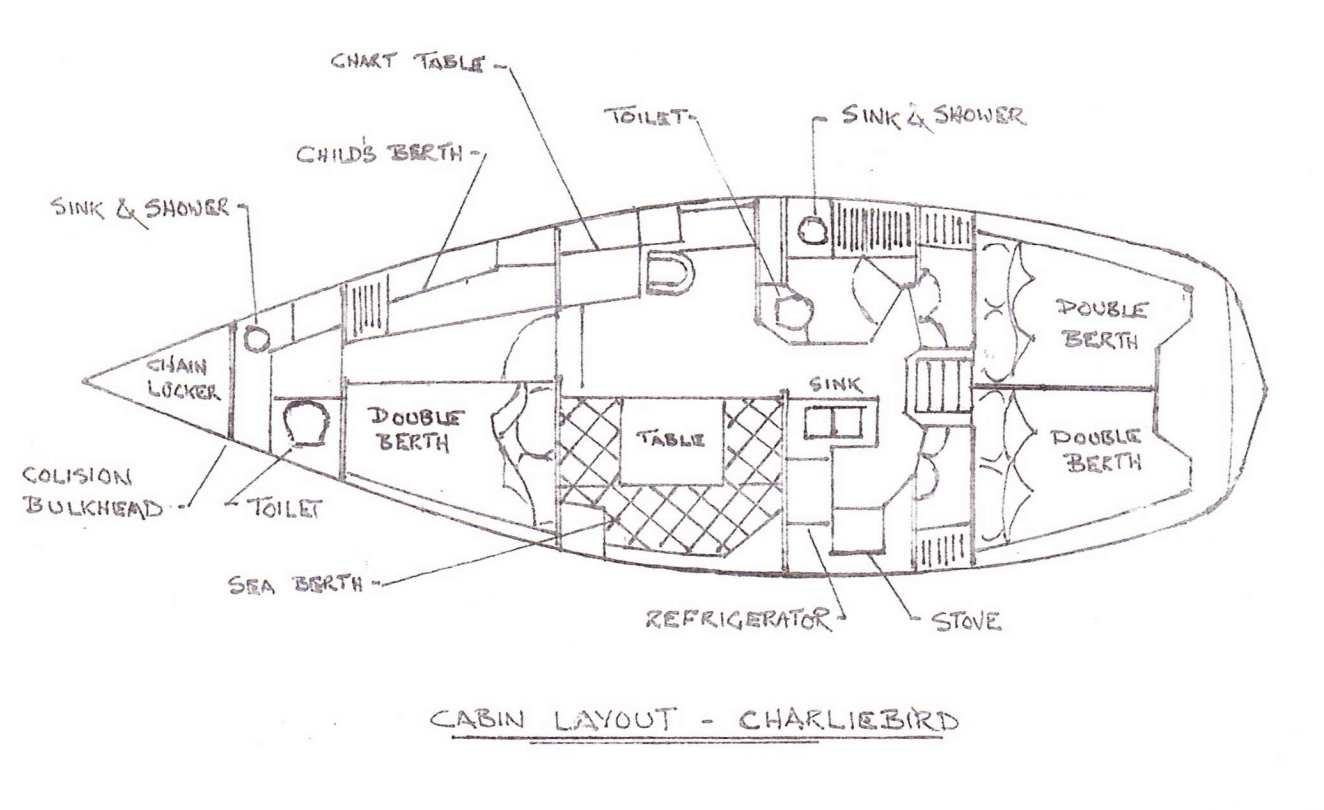

• CABIN LAYOUT-

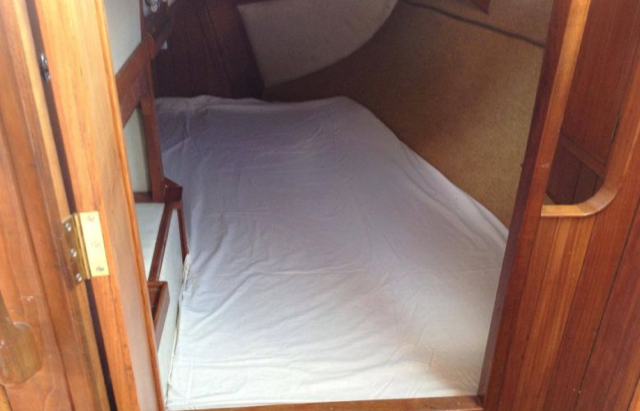

• FWD. Masters DOUBLE CABIN with Child's Berth/Settee and en suite, two DOUBLE Guest/ Crew CABINS AFT with Shower & Toilet close by.

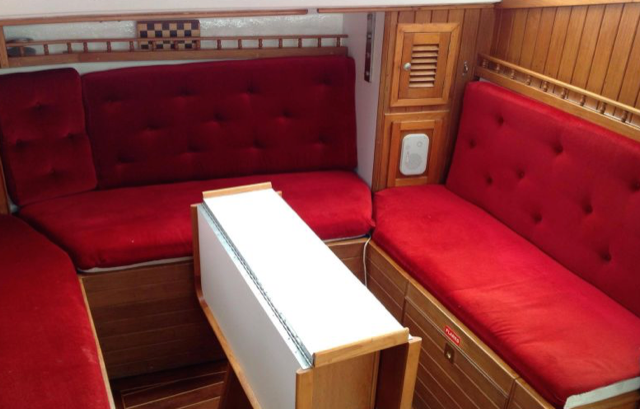

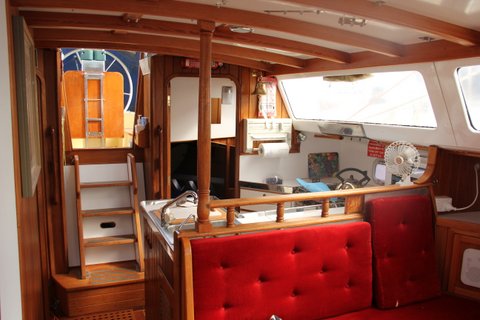

• Folding Dining Table with Settee seating, port side Settee has a Lee- cloth and can be used as a SEA BERTH.

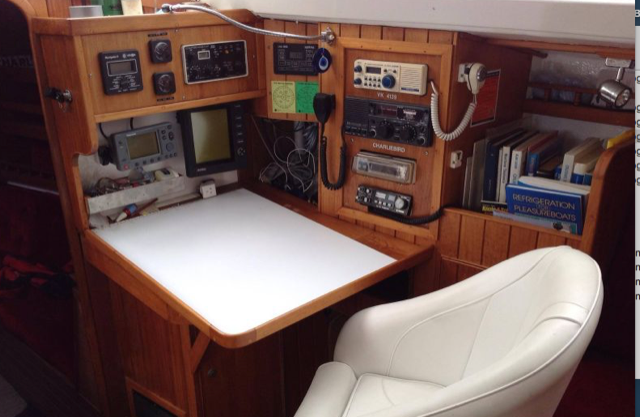

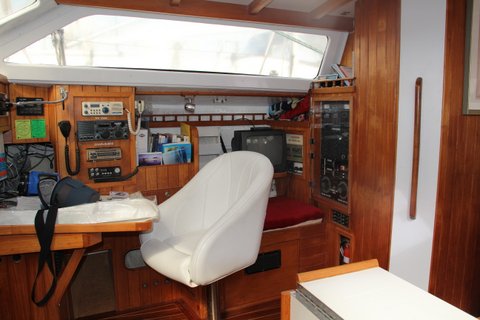

• Navigation Station has Instrument read-outs. Radios, Chart TABLE and swivel upholstered SEAT.

Call Premier Yachting on 0390416335 to arrange an inspection.
